Embedded CAN Bus Development with the ESP32 Processor
Posted by on
The Controller Area Network (CAN) bus is a robust communication protocol designed to facilitate data exchange between microcontrollers and devices in automotive and industrial applications. With its high reliability and real-time capabilities, it has become a cornerstone in modern embedded systems. The ESP32, a popular microcontroller from Espressif Systems, offers integrated CAN controller support, making it a compelling choice for implementing CAN bus systems. This essay explores the development process of a CAN bus using the ESP32 processor.
Overview of CAN Bus
The CAN protocol, standardized as ISO 11898, was developed to address the need for reliable communication in noisy environments, particularly in automotive systems. It employs a multi-master, message-oriented architecture and uses differential signaling to reduce susceptibility to noise. CAN is highly efficient, capable of handling data rates up to 1 Mbps (Classical CAN) and beyond with the advent of CAN FD (Flexible Data Rate).
Why ESP32 for CAN Bus Development?
The ESP32 is a versatile microcontroller featuring dual-core processing, Wi-Fi, and Bluetooth capabilities. One of its lesser-known features is the integrated SJA1000-compatible CAN controller. When paired with an external CAN transceiver, such as the MCP2551 or TJA1050, the ESP32 can interface seamlessly with CAN networks. The combination of processing power, connectivity options, and cost-effectiveness makes the ESP32 ideal for developing modern CAN-based applications.
Steps for Developing a CAN Bus System with ESP32
- Hardware Setup:
- ESP32 Board: Select an ESP32 development board, such as ESP32 DevKit or NodeMCU.
- CAN Transceiver: Use an external CAN transceiver module to convert the ESP32’s logic-level signals to differential signals required by the CAN bus.
- Connections: Connect the ESP32's CAN controller pins (RX and TX) to the transceiver. Ensure proper termination resistors (typically 120 Ω) are in place on the CAN bus to maintain signal integrity.
- Software Configuration:
- Install the ESP-IDF (Espressif IoT Development Framework) or Arduino IDE with the necessary libraries for CAN communication.
- Use libraries like
ESP32CANor the native CAN driver provided in ESP-IDF.
- Programming:
- Initialize the CAN controller with appropriate baud rates, filters, and operating modes (e.g., Normal, Listen-Only, or Loopback).
- Write functions to send and receive CAN messages. Each message consists of an identifier, data length code (DLC), and data payload.
- Testing and Debugging:
- Use a CAN analyzer tool to monitor the bus and validate communication.
- Debug issues by checking electrical connections, analyzing timing errors, and verifying message configurations.
- Integration with Applications:
- Implement logic to process received messages and trigger actions based on application requirements.
- Use the ESP32’s connectivity features to bridge CAN data with other networks (e.g., Wi-Fi or Bluetooth).
Example Application: Vehicle Diagnostics
One practical application of the ESP32 with CAN bus is On-Board Diagnostics (OBD-II) for vehicles. By connecting the ESP32 to a vehicle’s CAN network via the OBD-II port, users can monitor engine parameters, read diagnostic trouble codes (DTCs), and send commands to the Electronic Control Unit (ECU). Additionally, the ESP32 can transmit this data over Wi-Fi to a smartphone app, providing a user-friendly interface for vehicle diagnostics.
Challenges and Solutions
- Noise and Interference: Use proper shielding and grounding to minimize electrical noise.
- Synchronization Issues: Ensure accurate timing configurations for the CAN controller to avoid synchronization errors.
- Compatibility: Verify compatibility between the ESP32, transceiver, and the existing CAN network.
Future Prospects
With the increasing adoption of CAN FD and Ethernet-based communication in modern vehicles and industries, the role of flexible microcontrollers like the ESP32 will expand. Integration of advanced features such as over-the-air updates and IoT connectivity can transform traditional CAN applications into intelligent systems.
Conclusion
The development of a CAN bus system using the ESP32 processor combines the reliability of the CAN protocol with the versatility of a modern microcontroller. Whether for automotive diagnostics, industrial automation, or IoT applications, the ESP32 provides a cost-effective and scalable solution. By leveraging its features and following best practices in hardware and software design, developers can create innovative and robust systems to meet the demands of a connected world.

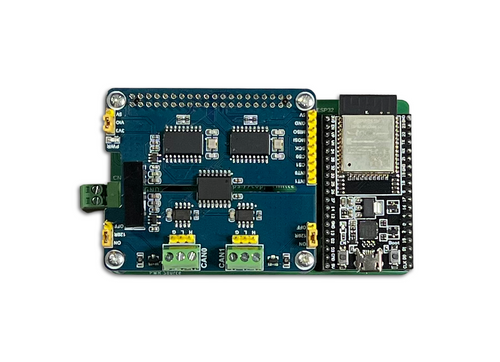

ESP32 Development Board with Dual Isolated CAN Bus HAT
