SAE J1939 Data Recorder - Programming And Data Retrieval

Posted by Wilfried Voss on

JCOM1939 Monitor Software

The following is an update on our activities regarding our development of an SAE J1939 data recorder. The development affects two of our devices, the  SAE J1939 Gateway Module With USB Port, RTC, MicroSD Memory Card and the SAE J1939 Gateway And Data Logger With Real-Time Clock.

Both gateways are supported by our free-of-charge jCOM1939 Monitor, an SAE J1939 Monitoring, Analyzer and ECU Simulation software under Windows.

The jCOM1939 Monitor Software is the perfect tool to monitor, analyze, and simulate SAE J1939 data traffic. The system combines our jCOM.J1939.USB that functions as an SAE J1939 to USB (or UART) gateway. A comprehensive and easy-to-use, easy-to-understand Windows software displays not only SAE J1939 data traffic; it also allows to scan the network, simulate an ECU (incl. full node address negotiation features), and respond to data request messages.

Both devices are already capable of recording SAE J1939 data traffic in combination with the JCOM1939 Monitor software, i.e. the data is directly recorded to the PC in form of Excel-compatible text files (.csv format). However, this recording mode requires the constant connection to a PC.

The new firmware version in combination with an updated Windows software allows the programming of PGN filters and the recording of these PGNs without the PC connection.

Note: The JCOM.J1939.USB-X device is powered through the USB port, while the -XE version can be connected directly to the SAE J1939 diagnostics port (per 9-pin Deutsch connector), which provides the power supply as well as the CAN connection.

Programming the SAE J1939 Data Recorder

We have extended the JCOM1939 software by a new section, called "Gateway Recorder:"

JCOM1939 Monitor Software - Gateway Recorder

In this example, we have chose some random PGNs and assigned a sample rate to each of them. A sample rate = 0 means it will be recorded every time it appears. The setup is then transmitted to the gateway and stored permanently. After being disconnected from the PC and powered up again, the gateway waits for data traffic and records it according to the setup.

SAE J1939 Data Recording Files Overview

The screenshot above shows a recording session lasting over several days. Each file contains data recorded during one hour. The file name indicates the date plus the hour of day (DATAYYMMGGHH.txt).

Retrieving the SAE J1939 Data

The data files can be accessed per our JCOM1939 Monitor software using the fast USB connection. For that purpose, we have added yet another section, called "Read SD Card:"

JCOM1939 Monitor Software - Read SD Card

In this setup, we see a total of 52 data record files. The list box on the left hand side shows the files plus the number of SAE J1939 data records per file. Each file can be uploaded individually to the PC for further processing.

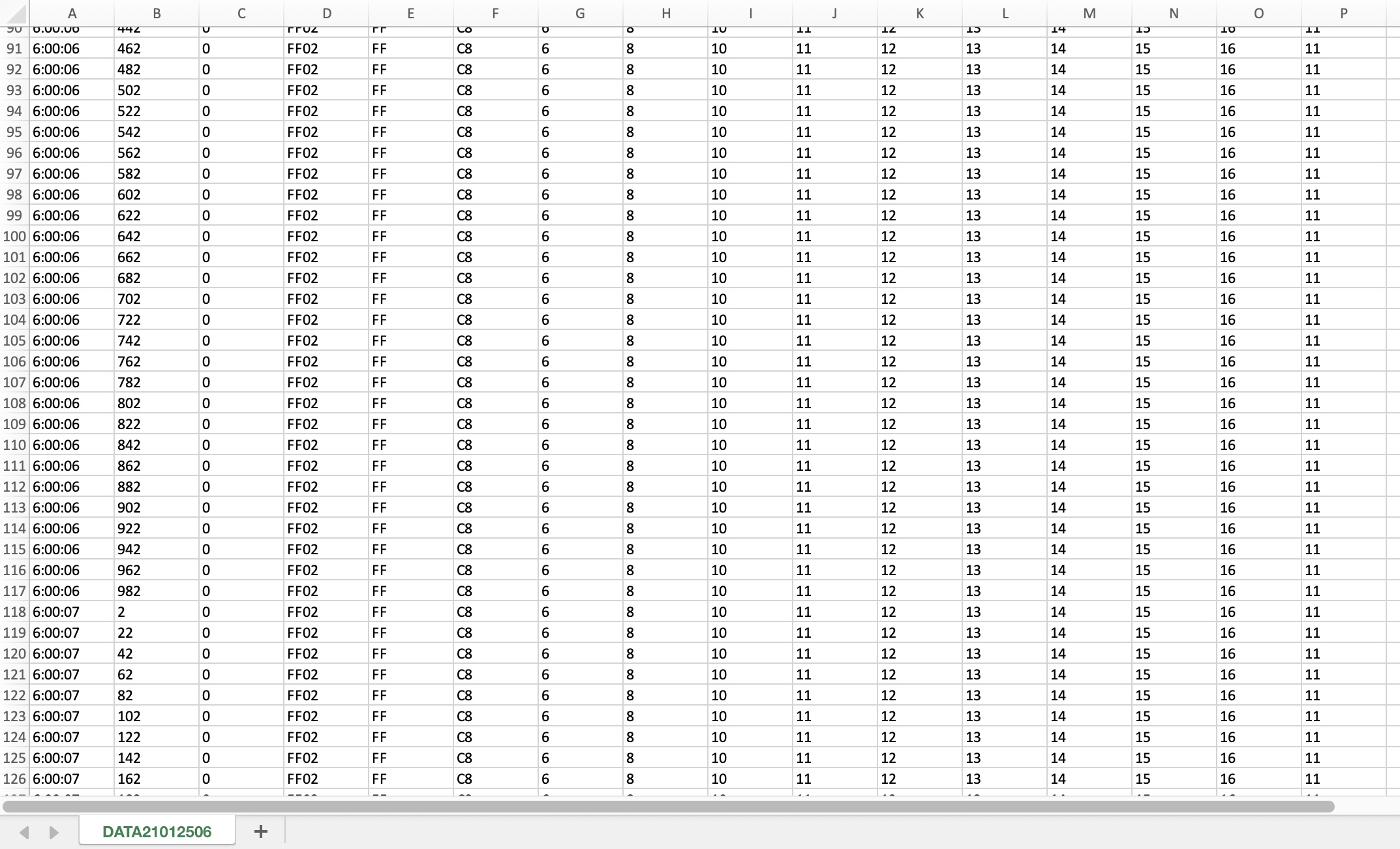

The following screen shot shows an example of recorded SAE J1939 data traffic:

The columns represent time of day, milliseconds (separated from time to support Excel formatting), Data Page, PGN, Destination Address, Source Address, Priority, Data Length, and Data.

We are currently in the process of further testing to assure they are no bugs and will release the new firmware and Windows version within the next few days.

Future Extensions

As far as the gateway firmware is involved, we don't see any extensions regarding the SAE J1939 data recoding mode. We are, however, actively planning an extended Simulator mode, where the gateway is programmed very similar to the data recording mode. This allows the gateway to simulate an ECU without constant PC connection. The choice of simulated PGNs and their mode (frequent transmission or transmission on request) is up to the user, i.e., the user can set up any PGN they desire.

In regard to the JCOM1939 Monitor software, we will add the simulator setup. We will, however, not add any significant extension to the recording mode. Instead, we will develop a separate software package with the tentative label "JCOM1939 Analyzer." The software's purpose is to analyze the recorded SAE J1939 data traffic and provide further insights, including PGBN descriptions and their SPNs, similar to the DBC file standard, and graphical representation. More information will follow on this web page.
