SAE J1939 250k/500k Baudrate Converter with Arduino Due - Source Code Included

Posted by Wilfried Voss on

The introduction of 500 Kbps (see SAE J1939/14) as an alternative to 250 Kbps, required clarifications on how to solve problems that come with incorporating devices supporting different baud rate settings in the same network. One solution comes with automatic baud rate detection. The SAE J1939/16 document outlines the methods used to detect the baud rate of an SAE J1939 network segment by ECUs that can adjust their CAN baud rate while in use. The specified approach provides a reliable method to detect the CAN baud rate of that network segment without interrupting network communications.

For more information, see our post  SAE J1939/16 Automatic Baud Rate Detection Process.

However, there are scenarios where automatic baud rate detection does not apply, e.g., attempts to connect a 250k supporting device into an existing 500k network or vice versa, assuming that the device does not support baud rate detection. For such cases, one will require a baud rate converter. This post describes the implementation of such a converter using our  Arduino-Based ECU Development Board with Dual CAN Interface

Note: The two CAN ports are not galvanically isolated, which does not pose a problem. It is, however, recommended to use isolated CAN ports to prevent grounding loops. The use of galvanically isolated CAN ports will, however, increase the hardware costs tremendously.

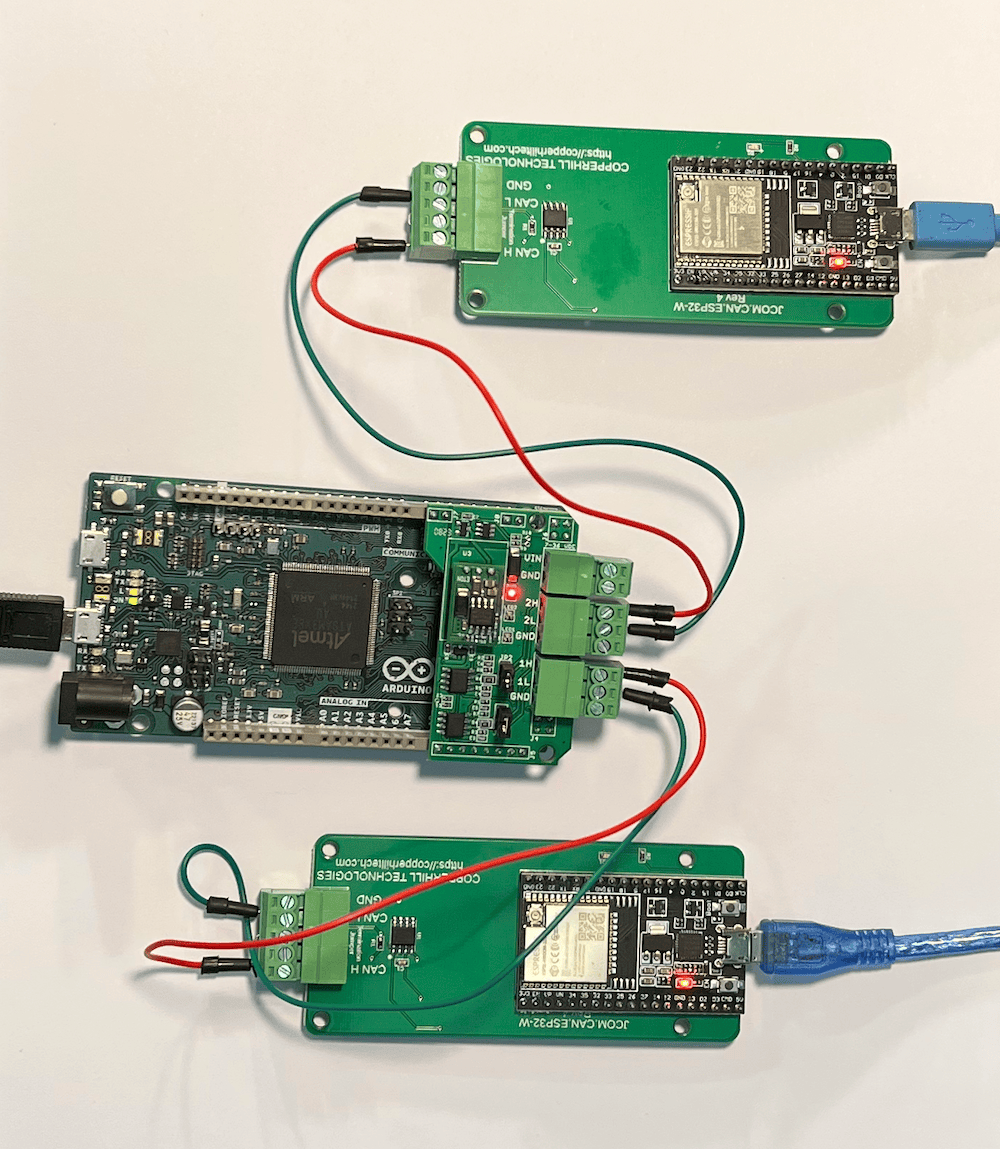

The board comes with two CAN ports of which one receives and transmits 250k SAE J1939 data frames, and the second port does so at 500k. The above image represents my test setup with the Arduino Due acting as the baud rate converter. I used two of our  SAE J1939 ECU Simulator boards in combination with the JCOM1939 Monitor software for Windows.

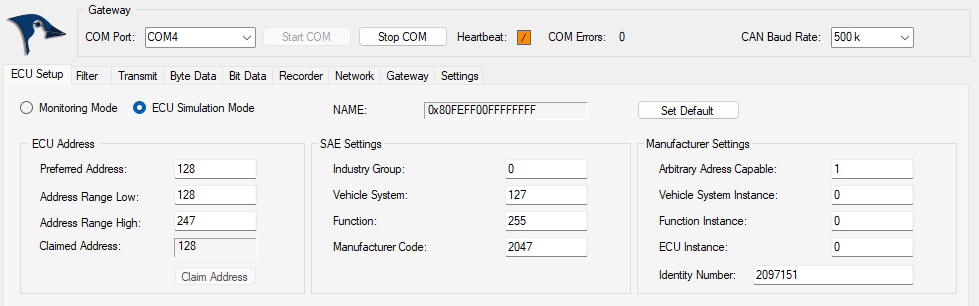

I set up one J1939-USB board to represent node 128 at 500k baud:

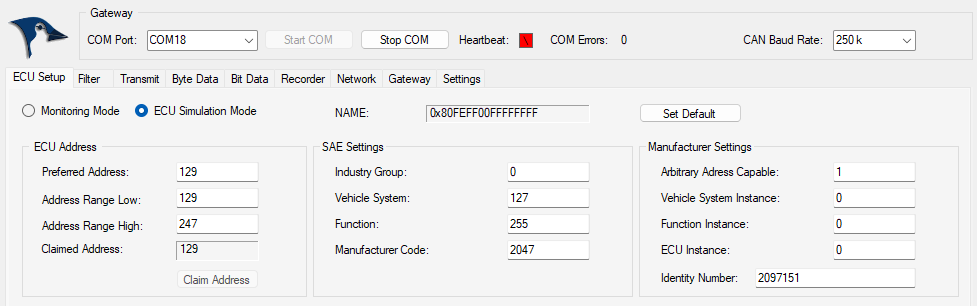

The second J1939-USB board was set up to represent node 129 at 250k baud:

The next image shows the data traffic at node 128:

Row 1: Node 128 receives address claim from node 129.

Row 2: Node 128 transmits PGN FF01 hex.

Row 3: Node 128 receives PGN FF00 hex from node 129.

A similar scenario happened at node 129:

Row 1: Node 129 receives address claim from node 128.

Row 2: Node 129 receives PGN FF01 from node 128.

Row 3: Node 129 transmits PGN FF00.

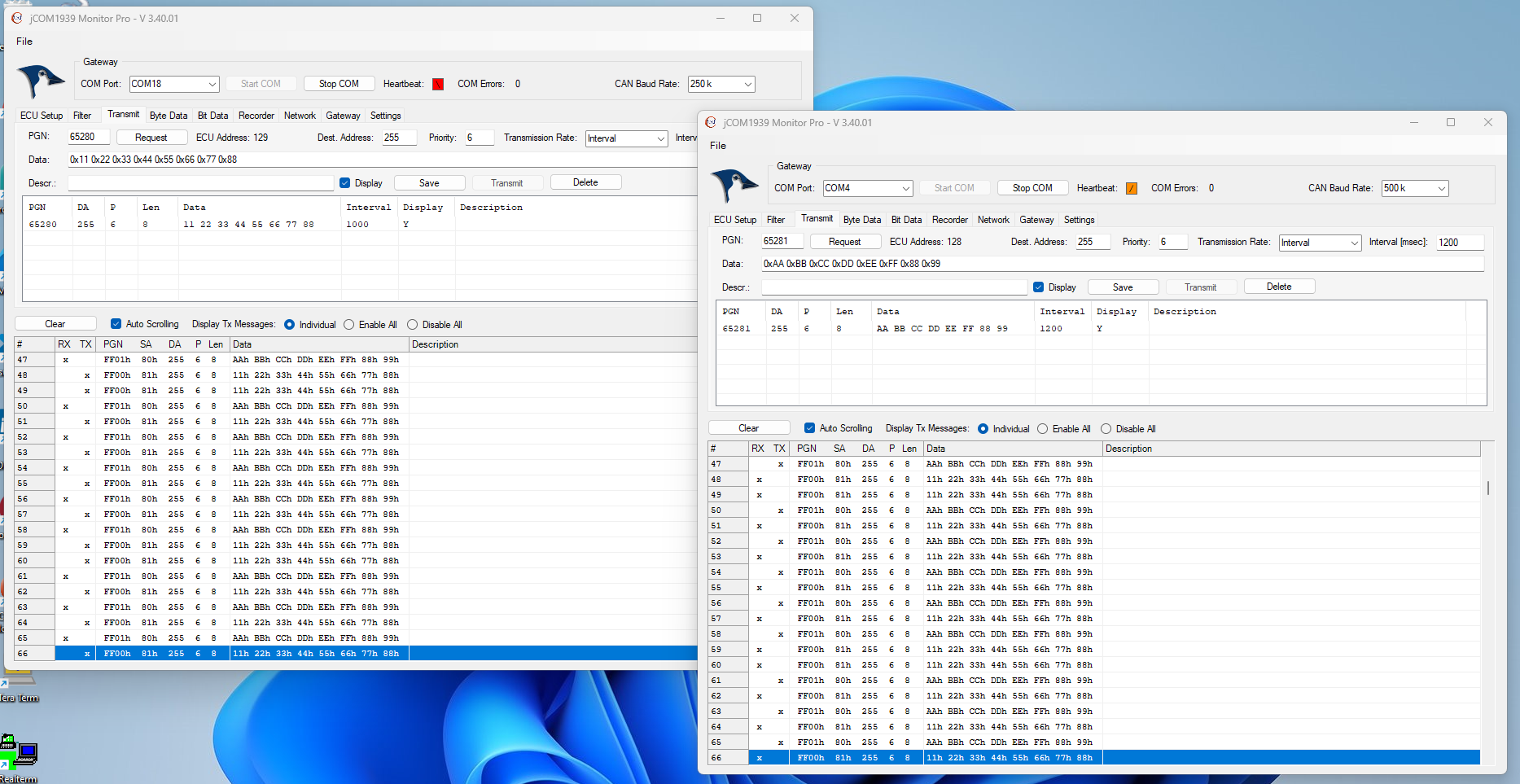

After this first test, I assigned transmit frequencies to the PGNs, and the data traffic is demonstrated here:

The above image shows two instances of the JCOM1939 monitor software, one assigned to node 128, the other to node 129.

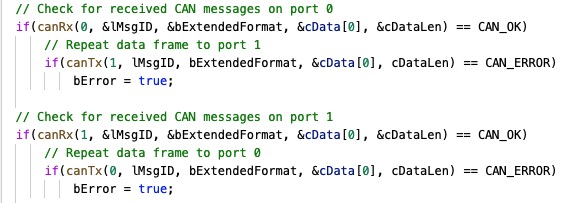

The Arduino code is fairly simple, and I will only refer to the most important section:

The code shows that CAN port 0 repeats every data frame it receives and transmits it per CAN port 1. The same happens the other way around.

The code can be easily extended to support message mapping, i.e., re-assigning message IDs (PGNs). The application can also be used as a CAN Repeater, Network Extender, and more.

Click here to download the Arduino code...
