  • Isolated CAN Bus Breakout Board 3.3 VDC

Isolated CAN Bus Breakout Board 3.3 VDC

Due to the global shortage of electronic components, we have only a limited supply. Please contact us for pricing and availability.
SKU:
CAN-BB-ISO-3
Quantity:

Product Description

Free Shipping Within The United States!

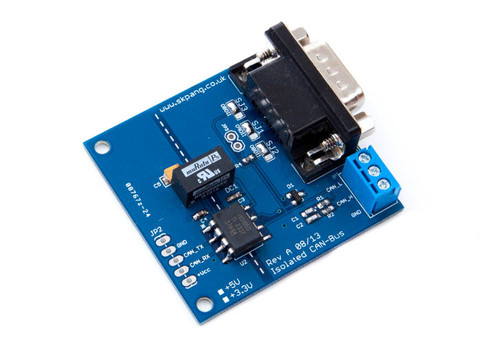

This is an isolated CAN-Bus breakout board using the Texas Instruments chipset ISO1050, together with an isolated DC/DC convertor.
The ISO1050 is a galvanically isolated CAN transceiver that meets the specifications of the ISO11898-2 standard. The device has the logic input and output buffers separated by a silicon oxide (SiO2) insulation barrier that provides galvanic isolation of up to 5000 VRMS for ISO1050DW and 2500 VRMS for ISO1050DUB.


Features

  • 3.3 VDC Supply voltage
  • 2500V Isolation
  • Failsafe Outputs
  • Low Loop Delay : 150 ns typical
  • Meets or Exceeds ISO 11898 requirements
  • Bus-Fault Protection of –27 V to 40 V
  • Dominant Timeout Function

Galvanic Isolation

High noise levels on a CAN bus network have the potential to destroy CAN bus transceivers. This noise originates mainly from two sources, ground loops and electrical line surges. Protecting a network against this destructive energy requires the galvanic isolation of the CAN bus system from other local node circuitry.

For more information, see: Galvanically Isolated CAN Bus Transceivers Protect Networks Against Destructive Energy...
