Product Description
Free Shipping Within the United States!

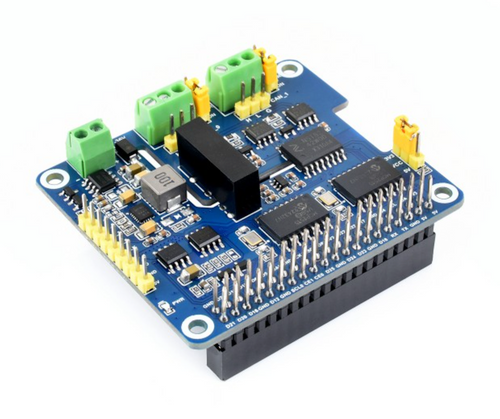

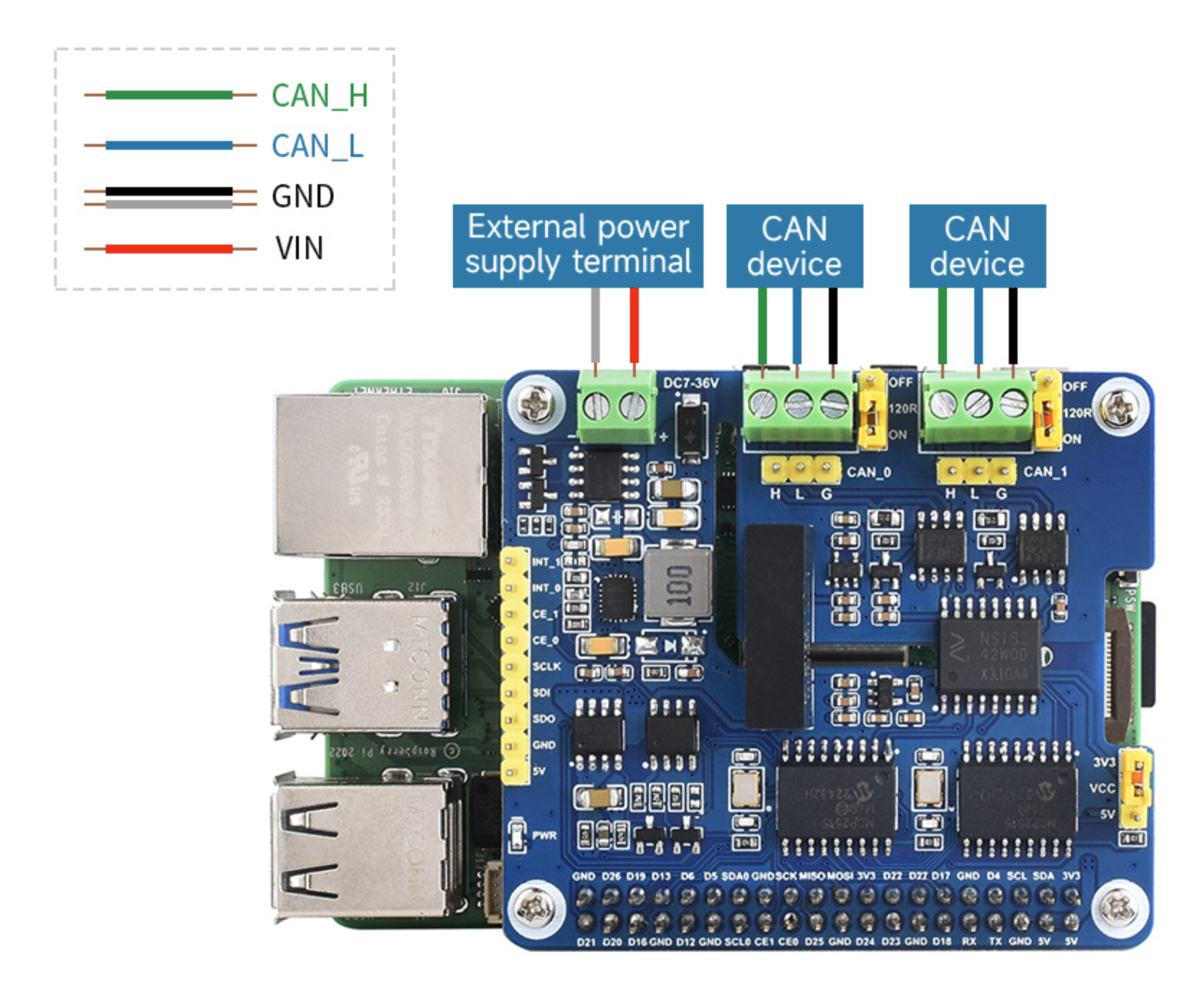

The 2-CH CAN HAT+ is a two-channel CAN bus (Classical CAN) expansion HAT designed for the Raspberry Pi. It supports expanding multiple CAN channels by stacking with the 2-CH CAN HAT or 2-CH CAN FD HAT. Adopting the HAT+ standard design, it is compatible with the Raspberry Pi series boards, including Raspberry Pi 5, 4, 3, and Zero. Several onboard protection circuits, including electrical isolation, enhance communication safety and reliability. It supports a wide voltage input range of 7-36V, making it suitable for industrial applications.
Features
- Standard Raspberry Pi 40PIN GPIO extension header supports Raspberry Pi series boards / Jetson Nano.
- Adopts the MCP2515 and SN65HVD230 dual chips combined solution, allowing 2-channel CAN communication.
- Onboard unibody power supply isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal.
- The onboard digital isolator and signal isolation make communication safer and stable, with better protection against electrical interference.
- The onboard external power supply terminal supports 7~36V broad voltage power input supports powering the Pi and the HAT at the same time.
- The onboard SM24CANB TVS (Transient Voltage Suppressor) diode provides ESD and transient peak voltage protection.
- Onboard voltage translator, select 3.3V/5V operating voltage by jumper
- Onboard 120Ω terminal resistor, configured by jumper.
- Breakout SPI and I2C control pins connect with other host control boards.
- Comes with online development resources and a manual (examples in Python/C).
Specifications
- CAN Controller: MCP2515
- Control bus: SPI
- Power supply method: External power supply terminal or Raspberry Pi GPIO
- Terminal voltage input: 7 ~ 36 VDC
- Operating voltage: 5 VDC
- Logic Level: 3.3/5 VDC
- Dimensions: 65.0 × 56.5 mm

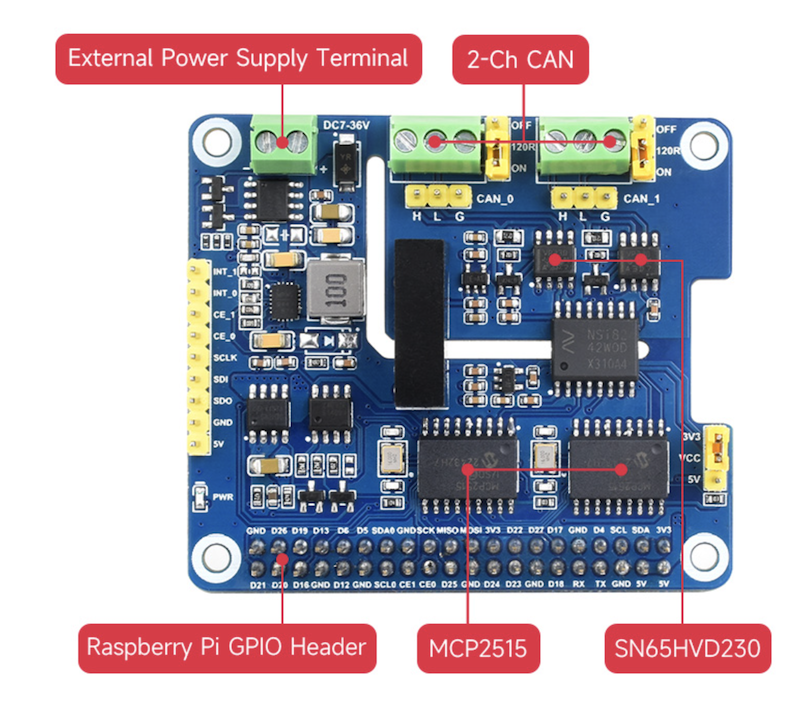

Two-Channel CAN Bus (Classical CAN) Capability

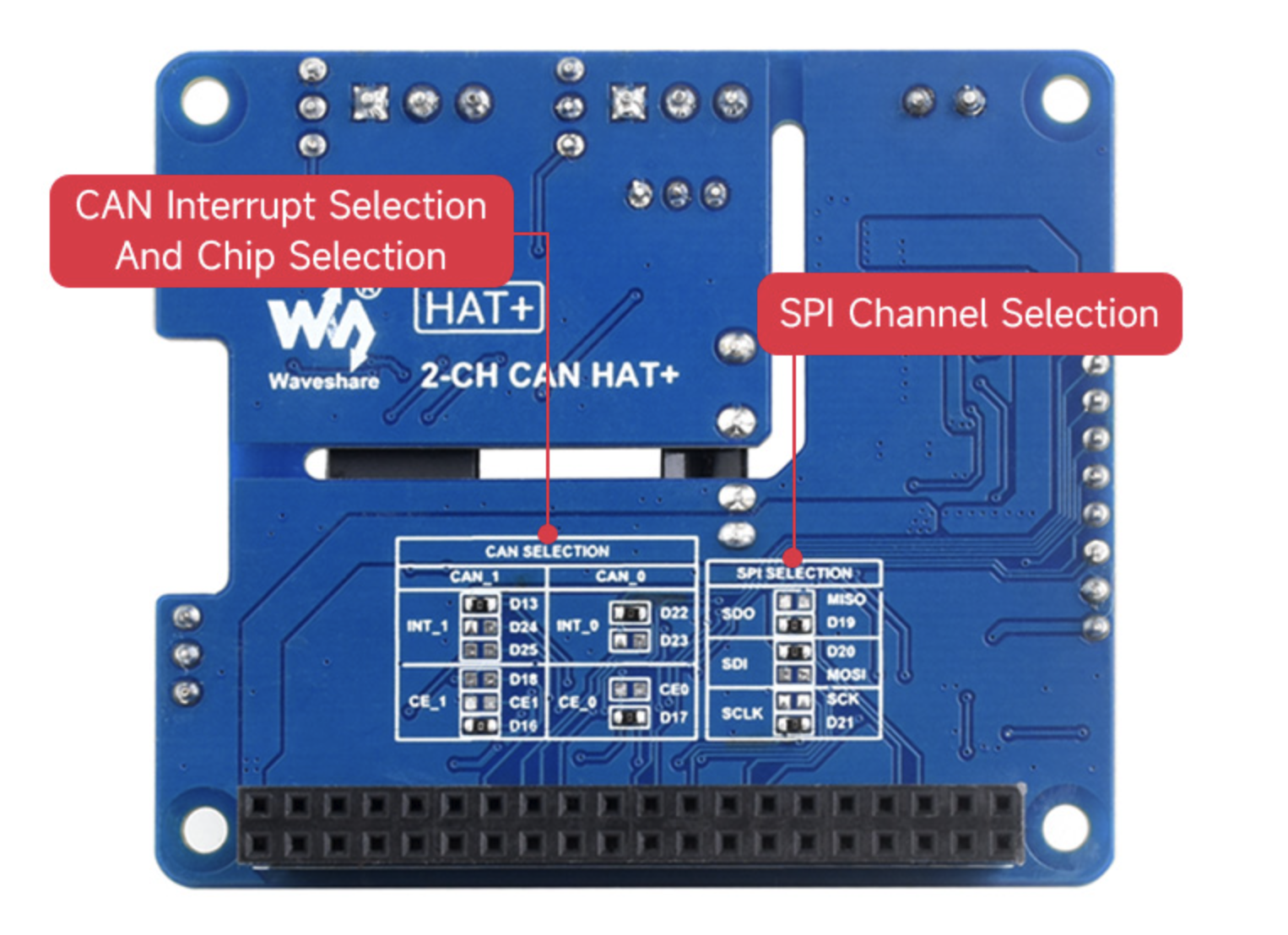

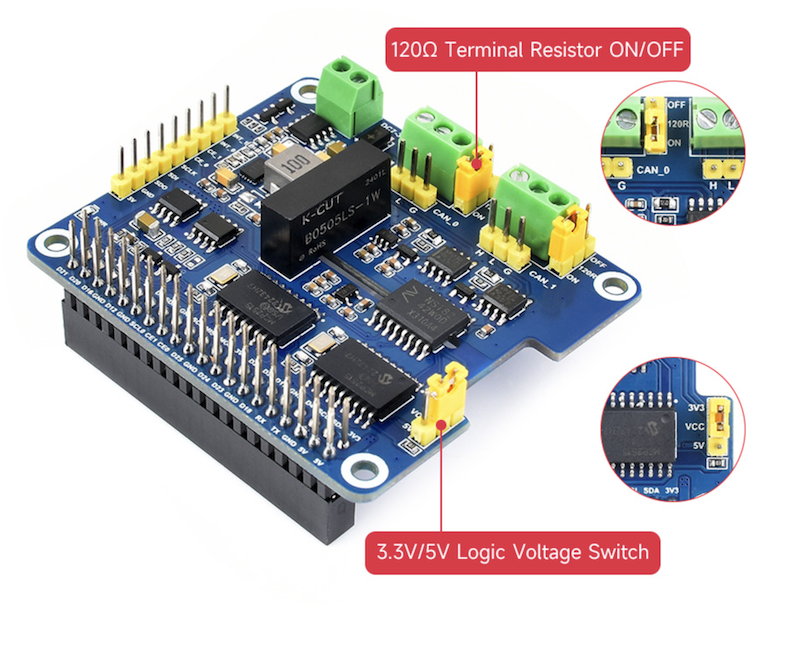

Flexible Jumper Settings

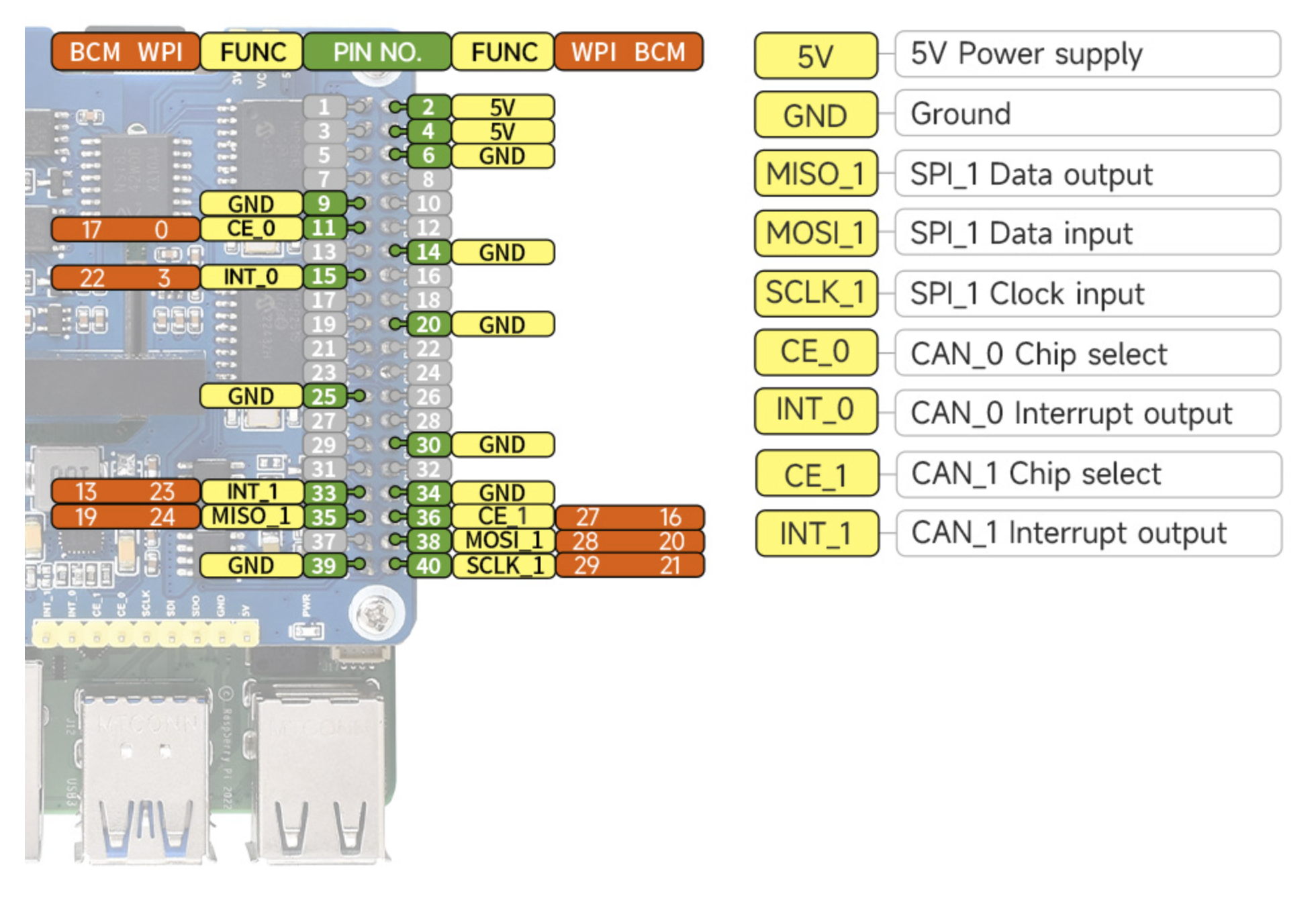

Pinout Definition
Dimensions
Development Resources
