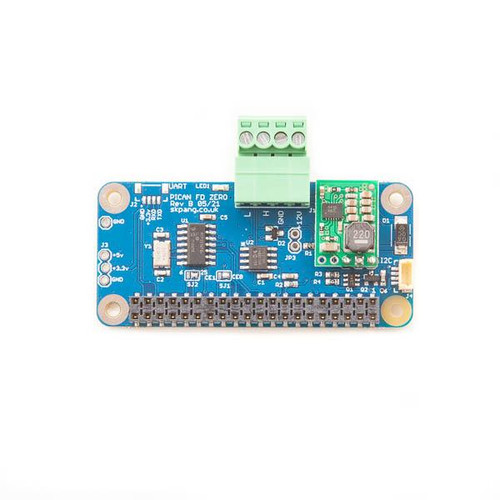

PiCAN FD Zero - CAN FD HAT for Raspberry Pi Zero with 1A SMPS

$71.95
SKU:
PICANFDZ-SMPS
Availability:
Usually ships within 1 business day.
Shipping:
Calculated at checkout
Quantity:

Product Description

Free Shipping Within The United States!

The PiCAN FD Zero HAT provides CAN Bus FD capability for the Raspberry Pi Zero. The Raspberry Pi Pico is a tiny, fast, and adaptable board built using the RP2040, a dual-core Arm Cortex-M0+ processor with 264KB internal RAM and support for up to 16MB of off-chip Flash.

The PiCAN FD Zero HAT uses the Microchip MCP2518FD CAN controller with MCP2562FD CAN transceiver. Connection is made via a 4way plug-in terminal block. CAN_H, CAN_L signals, and +12 VDC supply for the board and the Pi Zero. Onboard is a 1A SMPS that supplies power to the PiCAN FD and Pi Zero board.

The improved CAN FD extends the length of the CAN Bus message frame to up to 64 bytes per frame and a data rate of up to 8 Mbps.

Pi Zero, sensor board, and cable are not included.

Features

  • Microchip MCP2518FD CAN Controller
  • Microchip MCP2562FD CAN transceiver
  • Arbitration Bit Rate up to 1Mbps
  • Data Bit Rate up to 8Mbps
  • CAN FD Controller modes
  • Mixed CAN 2.0B and CANFD mode
  • CAN 2.0B mode
  • Conforms to ISO 11898-1:2015
  • High speed SPI Interface
  • 4-way plug-in terminal for CAN and power
  • 120 Ω terminator ready
  • LED indicator (GPIO 22)
  • SocketCAN driver, appears as can0 to application
  • Interrupt RX on GPIO25 or GPIO6
  • Qwiic (I2C) connector for extra sensors
  • 1A SMPS 6 VDC to 20 VDC input range
