PICAN FD with SAE J2716 SENT with SMPS

$109.95
SKU:
PICANFD-SENT-SMPS
Availability:
Usually ships within 1 business day.
Shipping:
Calculated at checkout
Quantity:

Product Description

Free Shipping Within the United States!

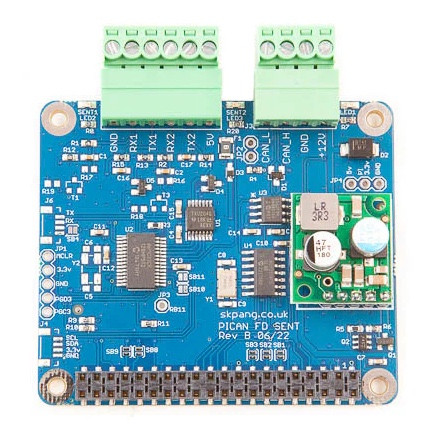

This PiCAN FD board comes with SAE J2716 SENT, Classical CAN, and CAN FD provided by the Microchip MCP2518FD IC.

A dsPIC33 micro-controller provides SAE J2716 SENT. The communication to the Raspberry Pi is per UART on ttyS0 using ASCII text commands. An example SENT GUI app is available written in Python3 and tkinter.

The firmware is updatable using the Microchip UnifiedHost java app, which requires the Raspberry Pi running in GUI mode.

Also included is an easy-to-install SocketCAN driver, and Python programming is supported.

The onboard 3A SMPS module can power the PiCAN FD SENT board and Raspberry Pi from 7 VDC to 24 VDC external supply.

CAN FD Features

  • Microchip MCP2518FD CAN Controller
  • Arbitration Bit Rate upto 1Mbps
  • Data Bit Rate upto 8Mbps
  • CAN FD Controller modes
    • Mixed CAN 2.0B and CANFD mode
    • CAN 2.0B mode
  • High speed SPI Interface (10 MHz)
  • 120Ω terminator ready
  • LED indicator (GPIO04)
  • Four fixing holes, comply with Pi Hat standard
  • SocketCAN driver, appears as can0 to application
  • Interrupt RX on GPIO25

SAE J2716 SENT Features

  • Two independent SAE J2716 SENT channels
  • Each channel can be configured for Tx or Rx
  • Configurable Tick Time and Frame Time
  • Status LED for each channel
  • 5v DC output to power small sensor
  • Powered by Microchip dsPIC33 micro-controller with updatable firmware
  • Communicate to the Pi via ASCII text commands on ttyS0
  • Python3 demo GUI app on Raspberry Pi
