PiCAN FD with GPS/GNSS ublox NEO-M8M for Raspberry Pi with SMPS

$99.95
SKU:
PICAN-FD-GPS-SMPS
Availability:
Usually ships within 1 week.
Shipping:
Calculated at checkout
Quantity:

Product Description

Free Shipping Within the United States!

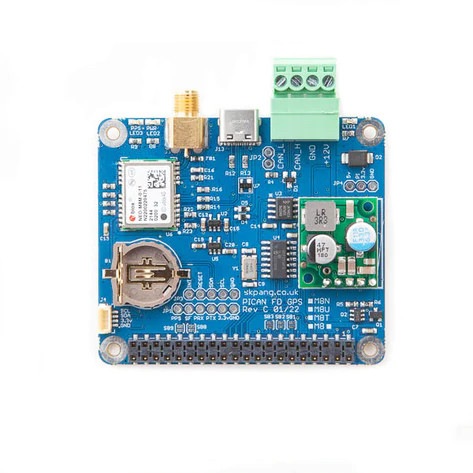

The PiCAN FD board has a ublox NEO-M8M GPS/GNSS receiver. The NEO-M8 modules employ simultaneous reception of up to three GNSS systems (GPS/Galileo together with BeiDou or GLONASS), recognize multiple constellations simultaneously, and provide outstanding positioning accuracy even when weak signals are involved. The antenna connection is via an SMA connector.

The onboard Microchip MCP2518FD IC provides classic CAN and CAN FD.

A 3A SMPS module powers the PiCAN FD GPS/GNSS board and Raspberry Pi (3/4) from 7 VDC to 24 VDC from an external power supply.

There is an easy-to-install SocketCAN driver and programming support in C or Python.

CAN FD Features

  • Microchip MCP2518FD CAN Controller
  • Arbitration Bit Rate u pto 1Mbps
  • Data Bit Rate upto 8Mbps
  • CAN FD Controller modes
    • Mixed CAN 2.0B and CANFD mode
    • CAN 2.0B mode
  • High speed SPI Interface (10 MHz)
  • 120Ω terminator ready
  • LED indicator (GPIO04)
  • Four fixing holes, comply with Pi Hat standard
  • SocketCAN driver, appears as can0 to application
  • Interrupt RX on GPIO25
  • Fix status LED

NEO-M8M Features

  • 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C
  • USB-C, I2C and UART communication
  • SMA antenna connection
  • u-center software compatible. Requires Windows PC via USB-C
  • Time Pulse LED
