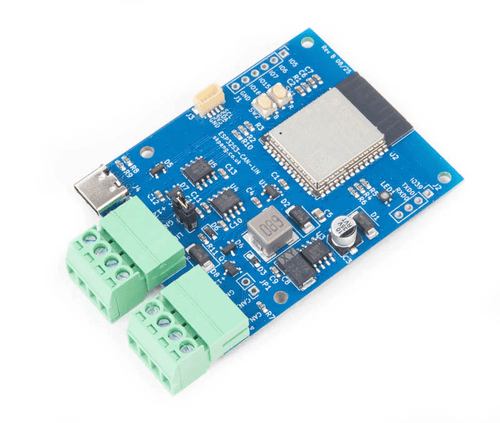

ESP32S3 CAN & LIN-Bus Board

$89.95
SKU:
ESP32S3-CAN-LIN
Shipping:
Calculated at checkout
Quantity:

Product Description

Powerful, compact, and built for real-world automotive and industrial networking. The ESP32S3 CAN & LIN-Bus Board combines dual-core processing with Wi-Fi, Bluetooth, and native CAN/LIN transceivers—making it the perfect platform for gateways, diagnostics, and control applications.

This board is powered by the ESP32-S3-WROOM-1-N8R8 module, featuring integrated Wi-Fi, Bluetooth 5 (LE/mesh), and an onboard CAN transceiver. A dedicated TJA1021T LIN transceiver provides full LIN-Bus support, making it ideal for automotive and industrial applications. For easy development, it includes a USB-C interface for programming, along with BOOT and RESET buttons and a multi-color RGB status LED.

Key Features

  • ESP32-S3 performance — Dual-core Xtensa® LX7 up to 240 MHz with 8 MB flash and 8 MB PSRAM

  • Integrated connectivity — Wi-Fi 802.11 b/g/n plus Bluetooth 5 (LE/mesh)

  • Dual-bus support — Onboard CAN transceiver and TJA1021T LIN transceiver

  • Developer friendly — USB-C programming, BOOT & RESET buttons, RGB status LED

  • Rugged power design — 7–14 V SMPS input with reverse-polarity protection

  • Expansion ready — I²C connector for sensor integration

  • Quick start — Schematics and demo code included (CAN and LIN examples)


Technical Specifications

  • Module: ESP32-S3-WROOM-1-N8R8

  • Processor: Dual-core Xtensa® LX7, up to 240 MHz

  • Memory: 8 MB QSPI flash, 8 MB PSRAM

  • Wireless: Wi-Fi 802.11 b/g/n, Bluetooth 5 LE/mesh

  • Transceivers:

    • CAN transceiver (onboard)

    • TJA1021T LIN transceiver (onboard)

  • Programming & I/O:

    • USB-C connector

    • BOOT and RESET buttons

    • RGB status LED

    • I²C connector

  • Power Input: 7–14 V SMPS with reverse-polarity protection

  • Included Resources: Board schematics, sample demo code (CAN and LIN applications)


Documents

Ensure to select:

  • Board:ESP32S3 Dev Module
  • USB CDC On Boot "Enabled"
  • PSRAM: "OPI PSRAM"
  • Upload Mode: "USB-TG CDC (Tiny USB)"

ESP32S3 Board with CAN FD and Classical CAN Ports - Arduino IDE Settings
