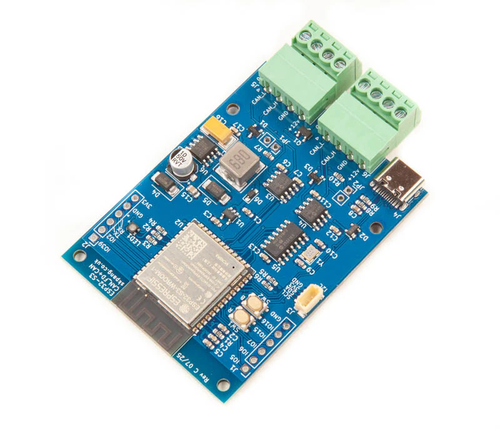

ESP32S3 Board with CAN FD and Classical CAN Ports

This development board is built around the ESP32-S3-WROOM-1-N8R8 module, offering a powerful combination of wireless connectivity, advanced processing capabilities, and robust CAN communication. The ESP32-S3 integrates Wi-Fi, Bluetooth 5 (including LE and mesh), and includes native support for Classical CAN. For modern automotive and industrial networking needs, CAN FD is supported via the external MCP2518FD controller, making the board suitable for both legacy and next-gen CAN-based applications.

Unlike many ESP32 boards that rely on a separate USB-to-UART bridge, this board features native (True) USB support via the ESP32-S3’s integrated USB OTG interface. This enables direct USB connectivity for programming, debugging, and serial communication without the need for an external USB-UART chip.

Key Features

• Processor & Memory

  • Powered by the ESP32-S3 SoC (System-on-Chip)

    • Xtensa® 32-bit LX7 dual-core processor, up to 240 MHz

    • Integrated single-precision FPU for efficient floating-point computation

  • 8 MB Quad SPI flash for firmware and file storage

  • 8 MB PSRAM for dynamic memory allocation and larger data buffers

• Wireless Communication

  • Wi-Fi 802.11 b/g/n, ideal for IoT, telemetry, and cloud applications

  • Bluetooth 5, Bluetooth Low Energy (BLE), and Bluetooth mesh

    • Enables connection to sensors, phones, BLE beacons, and mesh networks

  • On-board PCB antenna for compact and efficient wireless performance

• CAN Bus Connectivity

  • Classic CAN support directly via the ESP32-S3 built-in controller

  • CAN FD (Flexible Data-rate) via Microchip MCP2518FD SPI CAN controller

  • High-speed CAN transceivers included for reliable bus communication

• Power & Interfaces

  • Wide input voltage range: 7V to 24V via on-board SMPS module with reverse polarity protection

  • USB-C connector for easy programming and power supply

  • Boot and Reset push buttons for manual control

  • I²C expansion port for connecting external sensors and peripherals

• Additional Features

  • RGB LED for visual feedback and status indication

  • Compact and durable PCB design suited for embedded and development environments

Use Cases

• Automotive diagnostics and testing

• Industrial automation and CAN FD network gateways

• Wireless sensor data aggregation

• BLE to CAN bridge applications

• IoT devices with cloud connectivity and CAN-based control

Documents

• ESP32S3 Board with CAN FD and Classical CAN Ports - Schematics (PDF)...
• ESP32S3 Board with CAN FD and Classical CAN Ports - Demo Code...

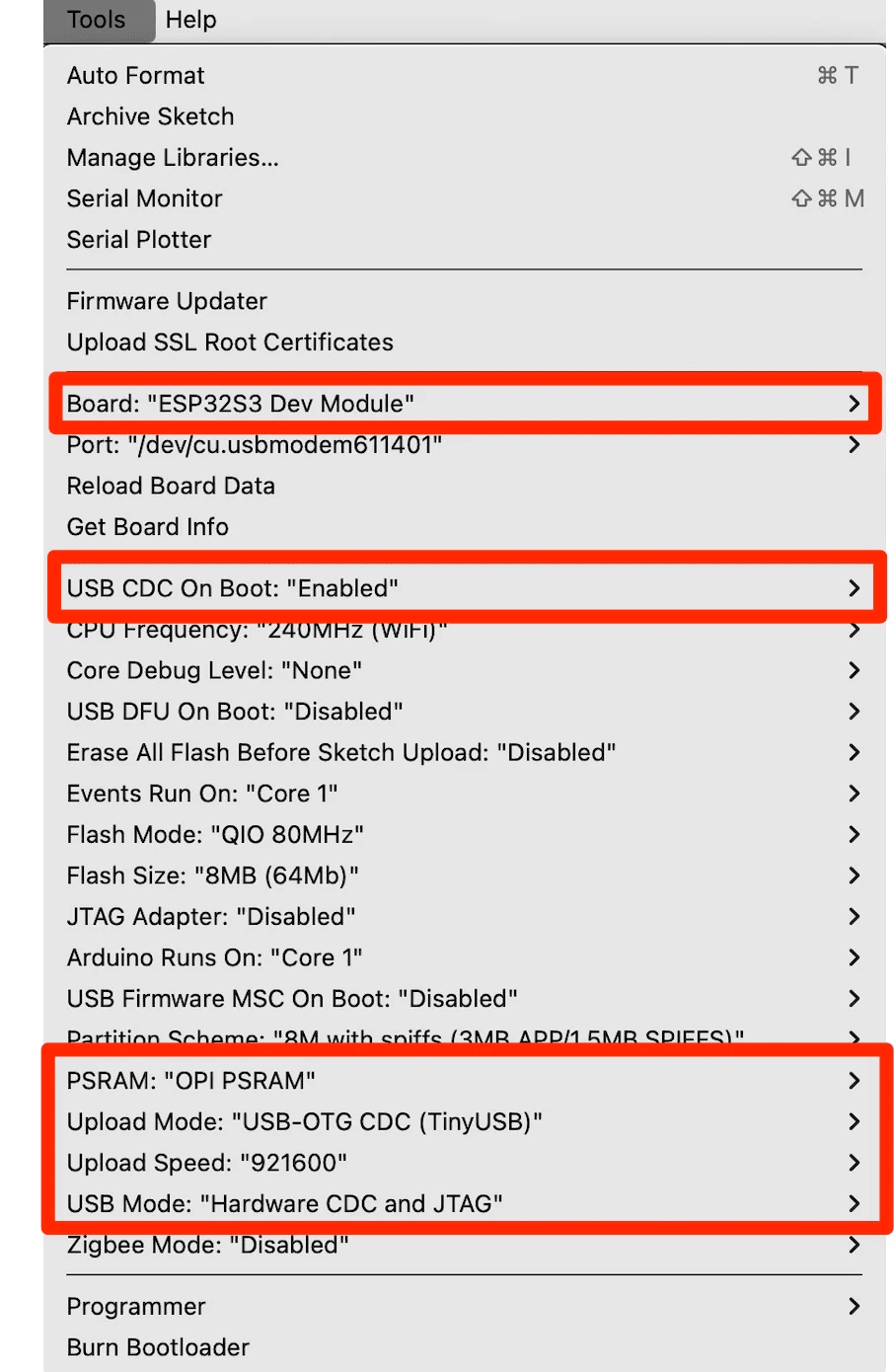

Ensure to select:

• Board:ESP32S3 Dev Module
• USB CDC On Boot "Enabled"
• PSRAM: "OPI PSRAM"
• Upload Mode: "USB-TG CDC (Tiny USB)"
