Guide to SAE J1939 - Parameter Group Number Compilation

Posted by Wilfried Voss on

The following is an excerpt from  A Comprehensible Guide To J1939 by Wilfried Voss.

A Comprehensible Guide to SAE J1939

For internal purposes, the parameter group number is extended to 24 bits = 3 bytes, where the most significant 6 bits are always set to zero. Each ECU must accomplish this process individually; this procedure is not part of the CAN standard.

To compile the exact Parameter Group Number (PGN), it is yet again necessary to consider the two alternatives, PDU1 (Peer-to-Peer communication) and PDU2 (Broadcast communication) format.

PDU1 – Peer-to-Peer Communication

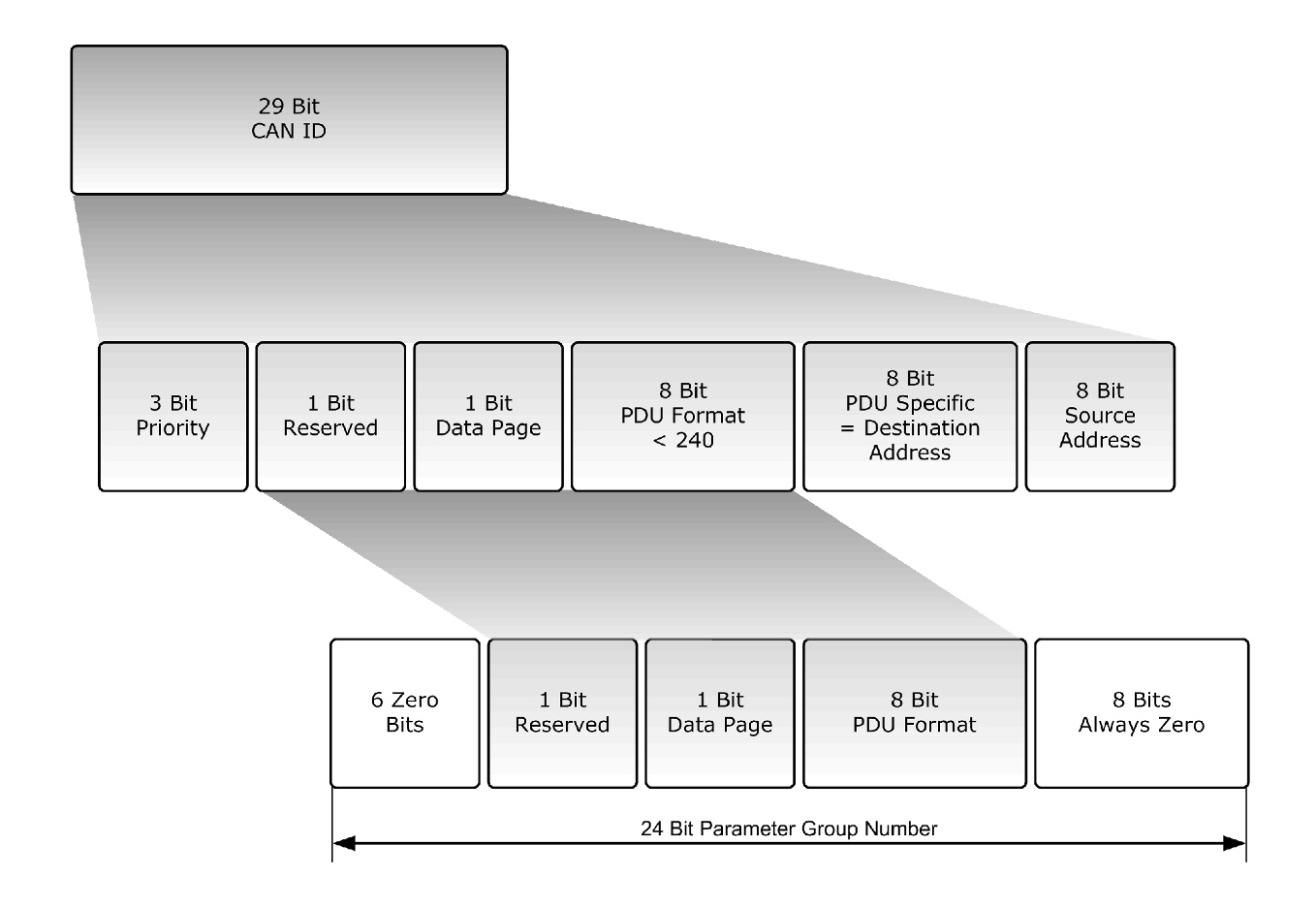

The following picture demonstrates how a Parameter Group Number is assembled in PDU1 format. The PDU Format is less than 240, and thus the least significant 8 bits are set to zero. PDU Specific (PS) is handled as the destination address.

Note: While the destination address is defined to address a specific node (ECU) in the network, it can also be used to address all ECUs at the same time. For example, a destination address (DA) of 255 is called a Global Destination Address, and it requires all nodes to listen and, if required, to respond. The SAE J1939/21 standard defines the Global Destination Address in one short sentence that can be easily overlooked.

Parameter Group Number – PDU1 Format

PDU2 – Broadcast Communication

The following picture demonstrates how a Parameter Group Number is assembled in PDU2 format. The PDU Format is equal to or greater than 240, and thus PDU Specific (PS) is handled as a group extension (GE).

Parameter Group Number – PDU2 Format

Proprietary Parameter Group Numbers

As the name Proprietary Parameter Group Numbers implies, the SAE J1939 standard supports Parameter Groups in PDU1 and PDU2 Format that manufacturers can assign for their specific needs, including the use of the data field in the message. The only constraint is that, per the SAE request, it should avoid “excessive” utilization of the network (e.g., 2 percent or more). This requirement is, however, not based on any technical restrictions by the CAN/J1939 network.

The following table shows the Parameter Group Number Range where the Proprietary Parameter Group Numbers are highlighted.

Parameter Group Number Range
