Ixxat, a brand of HMS Networks (Sweden), has released its product line of galvanically isolated CAN FD repeaters. Adding to the current Ixxat line of CAN bridges and gateways, HMS Networks offers four CAN FD repeaters, which are also suitable for Classic CAN Bus networks.

The products allow CAN FD and CAN Bus devices to be networked using tree and star topologies, as well as allowing implementation of drop lines. No configuration is required.

The ICAN FD repeaters are available with two and four CAN Bus ports for copper-wired networking (versions CAN-CR100 and CAN-CR300) and copper and fiber-optic connectivity (CAN-CR110/FO). All repeaters come with galvanic isolation of 1 kV, except for the CAN-CR120/HV, which withstands up to 3 kV.

With the fiber-optic version, it is possible to bridge distances with high electromagnetic interferences or to design applications with high demands on galvanic isolation. The repeaters come with plastic housings for DIN-rail mounting, and the bus-line connection is established via screw terminals.

More Information...

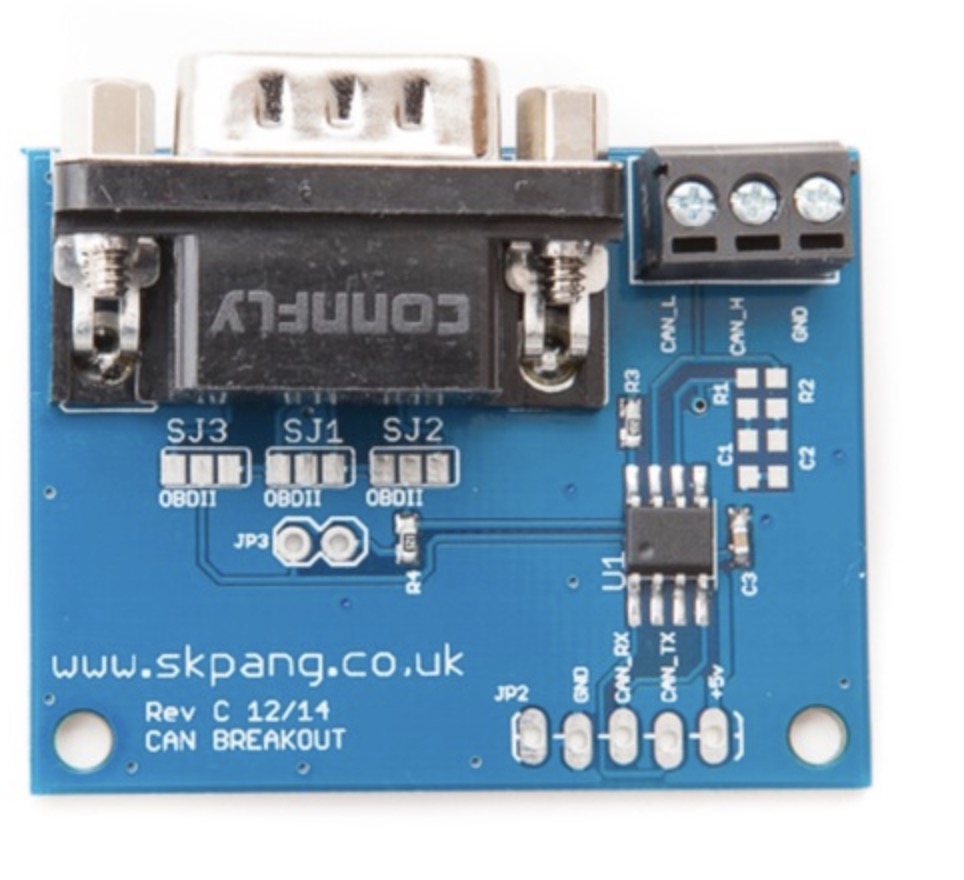

CAN-Bus CAN FD Breakout Board 5VDC

This board is a CAN Bus breakout board with Flexible Data Rate (CAN FD) using the Microchip MCP2561FD chip. The output pins are on both screw terminals and a DB9 connector. The DB9 can be configured for use with an OBDII cable, SAE J1939 cable, or CAN Analyser pin-out via solder bridges.

Features

• Microchip MCP2561FD CAN FD transceiver
• 5 VDC supply
• Supports up to 6 Mb/s operation
• Implements ISO-11898 and ISO-11898-5 standard physical layer requirements
• Up to 112 nodes can be connected
• DB9 and screw terminal connection
• DB9 can be configure for OBDII cable or CAN Analyser pin-out
• 120 Ohm terminating resistor via jumper
