Controller Area Network (CAN Bus) - Message Broadcasting

Posted by Wilfried Voss on

The following is an excerpt from  A Comprehensible Controller Area Network by Wilfried Voss.

A Comprehensible Guide to Controller Area Network

The broadcasting of messages in a CAN Bus network is based on a producer-consumer principle. One node, when sending a message, will be the producer while all other nodes are the consumers. All nodes in a CAN Bus network receive the same message at the same time.

In a multi-master network nodes may transmit data at any time. Each node “listens” to the network bus and will receive every transmitted message. The CAN protocol supports message-filtering, i.e. the receiving nodes will only react to data that is relevant to them.

Messages in CAN are not confirmed, because that would unnecessarily increase the bus traffic. CAN assumes that all messages are compliant with the defined standard and if they do not, there will be a corresponding response by all nodes in the network (see Chapter 8.1 - Error Detection). All receiving nodes check the consistency of the received frame and acknowledge the consistency. If the consistency is not acknowledged by any or all nodes in the network, the transmitter of the frame will post an error message to the bus.

If either one or more nodes are unable to decode a message, i.e. either detect an error in the message or are unable to read the message due to an internal malfunction, the entire bus will be notified of the error condition. Nodes that transmit faulty data or nodes that are constantly unable to receive a message correctly remove themselves from the bus (see Chapter 8.3 - Fault Confinement) and thus allow restoration of proper bus conditions.

The CAN standard also defines the request of a transmission from another node by means of a remote frame. The remote frame and the requested data frame use the same message identifier. They are, however, distinguished by the RTR bit (Remote Transmission Request) during the arbitration process (see also Chapter 4 - Message Frame Architecture).

The following will explain with examples the two methods of message broadcasting, data frame and remote frame broadcasting.

Message Broadcasting With Data Frames

Per definition, CAN nodes are not concerned with information about the system configuration (e.g. node address), hence CAN does not support node IDs. Instead, receivers process messages by means of an acceptance filtering process, which decides whether the received message is relevant for node’s application layer or not. There is no need for the receiver to know the transmitter of the information and vice versa.

All nodes in a CAN network receive the same message at the same time, meaning each node “listens” to the network bus and will receive every transmitted message. The message filter guarantees that the receiving nodes will only react to data that is relevant to them.

Picture 5.1.1 demonstrates the message broadcasting of a data frame, in this case in a four node CAN network. It also provides a first, but very rudimentary look into the architecture of a CAN controller. Each node represents a CAN controller, which, among many other function blocks, accommodates a programmable message filter and a message buffer.

Controller Area Network (CAN Bus) - Message Broadcasting - Data Frame Transmission

Note that a data frame is recognized by a dominant RTR (Remote Transmission Request) bit (refer to Chapter 4 - Message Frame Architecture).

The data transmission/reception sequence is as follows (example):

  • Node A transmits a message
  • Nodes B, C and D receive the message
  • Nodes B and D accept the message, Node C declines

This example demonstrates very clearly how flexible the broadcasting of messages can be.

Note: The definition of message IDs and the setup of the message filter depend solely on the application needs. Message IDs must be assigned during the design phase and are usually hard-coded into the application.

Message Request With Remote Frames

Per definition, CAN nodes are not concerned with information about the system configuration (e.g. node address), hence CAN does not support node IDs. Instead, receivers process messages by means of an acceptance filtering process, which decides whether the received message is relevant for node’s application layer or not. There is no need for the receiver to know the transmitter of the information and vice versa.

All nodes in a CAN network receive the same message at the same time, meaning each node “listens” to the network bus and will receive every transmitted message. The message filter guarantees that the receiving nodes will only react to data that is relevant to them.

Picture 5.2.1 demonstrates the message broadcasting of a remote frame, in this case in a four node CAN Bus network.

CAN Bus Message Request With Remote Frames

Note that a remote frame is recognized by a recessive RTR (Remote Transmission Request) bit (refer to Chapter 4 - Message Frame Architecture).

The message request sequence is as follows (example):

  • Node A sends a remote frame to request data
  • Node B, C and D receive the message
  • Node D accepts the message, Nodes B and C decline

Note: The data request cycle in a CAN network will involve the sending of two messages, the actual message request (remote frame), followed by the requested data (data frame).

It may be obvious, but it is important to know that the sending of a remote frame, meaning the request of a data frame, consequently causes a response, namely the sending of a data frame containing the requested information.

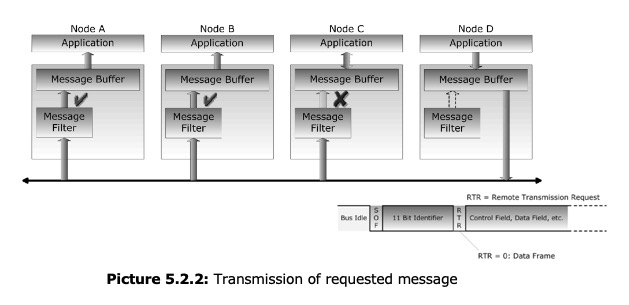

Picture 5.2.2 demonstrates in a further example the response to the remote frame, i.e. the sending of a data frame.

CAN Bus - Transmission of requested message

Note that a data frame is recognized by a dominant RTR (Remote Transmission Request) bit (refer to Chapter 4 - Message Frame Architecture).

The data transmission/reception sequence is as follows (example):

  • Node D sends the requested message
  • Nodes A, B and C receive the requested message
  • Nodes A and B accept the requested message, Node C declines

Note: The remote frame and the requested data frame use the same message identifier. Both frames are distinguished by the RTR (Remote Transmission Request) bit, which is part of the arbitration field. In case a data frame and a remote frame using the same message ID try to access the bus simultaneously, the data frame will gain the bus access over the remote frame, since it uses a dominant RTR bit.
