CAN Bus Tutorial - Benefits of Using the CAN Bus

Posted by Wilfried Voss on

The following is an excerpt from  A Comprehensible Controller Area Network by Wilfried Voss.

A Comprehensible Guide to Controller Area Network

Like any field-bus system based on serial communication, Controller Area Network will reduce wiring, which was initially considered an advantageous side effect. Distributed control, i.e., the use of a multi-processor system, will consequently result in increased performance. The vastly reduced costs of microcontroller chips in the market made the use of multiple processors in one system affordable. Other advantages include increased reliability and improved service and maintenance features.

Another significant benefit of applying the CAN Bus technology is apparent during the time-consuming and costly hardware and software development process. The Physical Layer and the Data Link Layer, as defined in the ISO 11898 standard, are already implemented in silicon, either in the form of a stand-alone CAN controller or integrated into multi-function single-chip microcontrollers.

CAN Bus Controller Firmware

As demonstrated in picture 3.1.1, the ISO/OSI Reference Model specifies seven levels beginning with the physical connection to the actual user application, i.e., the Application Layer.

The standard CAN implementation bypasses the connection between the Data Link Layer and the Application Layer to save on valuable memory resources by minimizing the overhead and, as a result, gaining performance as needed for embedded solutions with limited resources.

Layers 3 through 6, i.e., all layers above the Data Link Layer, require additional software resources provided by higher layer protocols such as CANopen, DeviceNet, and J1939 (see Chapter 3.5 - Higher Layer Protocols).

CAN Bus - Tutorial - ISO/OSI 7 Layer Reference Model

The Application Layer is the layer that interacts with the operating system or application of the CAN device.

The Data Link Layer connects the actual data to the protocol to send, receive, and validate data. Under CAN, it represents the data exchange, including error detection/recovery and fault confinement, transmission acknowledgments, etc., and all the ingenious features as previously described in Chapter 2 - Main Characteristics.

The Physical Layer represents the actual hardware, i.e., the physical connection between nodes in a network and the electrical signal characteristics such as voltage levels and timing.

Note: Whenever you attempt to add software functions between the CAN Data Link Layer and the Application Layer, you will be adding functionalities that are already covered by off-the-shelf available higher layer protocols such as CANopen and DeviceNet.

The software development engineer will benefit from the fact that under CAN, the two lowest layers, the Physical Layer and Data Link Layer, are already integrated into silicon. The on-chip method reduces the software development process by concentrating solely on the coding of the actual application software.

Most CAN Bus chip manufacturers and vendors in the CAN business provide source code (e.g., for LINUX) and libraries (e.g., Windows APIs) for all function calls representing the connection between the Data Link Layer and the Application Layer.

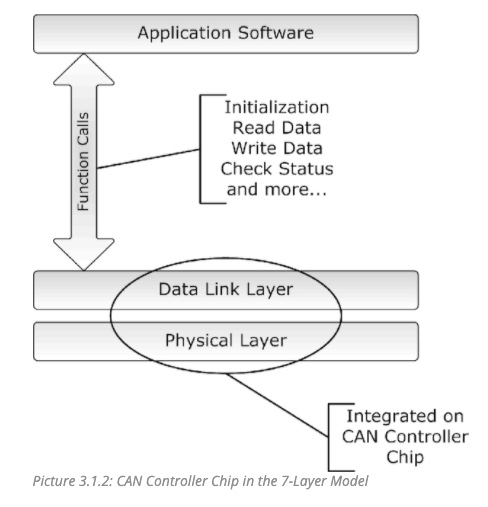

CAN Bus Controller Chip in the 7-Layer Model

The nature of the necessary function calls is identical to those needed for the access of any hardware device (drivers):

  • Initialization
  • Read Data
  • Write Date
  • Check Status

Naturally, this is just an elementary list of function calls. Most code libraries provide extended functionality like the determination of the busload and more.

Speed, Reliability, and Error-Resistance

The CAN Bus technology provides the ability to function in challenging electrical environments, a high degree of real-time capability, and ease of use. The real-time capabilities are supported by extremely short arbitration times in the range of microseconds, limited data length, and extremely short error recovery times, again, in the range of microseconds.

The reliability and error resistance of CAN has been calculated in a mathematical model. Here is an example using the following parameters and conditions:

  • 1 Bit error every 0.7 sec
  • Baud rate of 500 kBit/sec
  • Operation of 8 hours/day and 365 days/year

According to the mathematical model, the Residual Error Probability will be 1 undetected error in 1000 years. (Source: CAN-in-Automation)
