Teensy 4.1 Triple CAN Bus Board: Bridge Vehicle Networks to the Cloud with Ethernet and CAN FD
Posted by
onModern vehicles rely heavily on Controller Area Network (CAN) systems to manage communication among ECUs, sensors, actuators, and diagnostic modules. As connectivity becomes pervasive—enabling remote diagnostics, over-the-air updates, and fleet management—the need to securely and efficiently bridge CAN bus data to cloud infrastructure becomes critical.
The Teensy 4.1 Triple CAN Bus Board with 240×240 LCD and Ethernet from Copperhill Technologies provides an excellent turnkey platform to do just that. It blends raw performance, multiple CAN interfaces, and networking capabilities into a compact, Arduino-compatible form—ideal for prototyping gateways, dashboards, and intelligent IoT endpoints.
What Makes This Board Special?
Powerful Core
At its heart is the Teensy 4.1 microcontroller, driven by an NXP i.MX RT1062 Arm Cortex-M7 running at 600 MHz—one of the fastest microcontroller platforms in its class. It comes equipped with 1 MB RAM, 2 MB flash, a hardware floating-point unit (FPU), cryptographic acceleration, an RTC, Ethernet support, and microSD slot—all within a small form factor.
Triple CAN Connectivity
The board offers three CAN interfaces:
-
Two channels of CAN 2.0B (Classical CAN)
-
One channel of CAN FD (Flexible Data-rate) for high-speed, modern network support
- Termination resistors (120 Ω) are included for stable signal integrity.
Built-in Ethernet Networking
An onboard 10/100 Mbps Ethernet PHY with MagJack enables network connectivity for data forwarding, HTTP servers, MQTT clients, or cloud integration. It also works smoothly with Teensyduino-compatible Ethernet libraries such as QNEthernet.
Local Display for Diagnostics
The integrated 1.54” IPS TFT LCD (240×240) offers a convenient interface for local monitoring—perfect for displaying real-time CAN traffic, custom dashboards, or network status.
Robust Power Handling
Designed for field deployment, the board supports:
-
7–12 V DC input range
-
Onboard switching regulator
-
Reverse-polarity protection
This makes it suitable for automotive or industrial environments.
Use Case: CAN-to-Cloud Gateway
Let’s walk through a prototype project that turns this board into an edge gateway for sending vehicle data to the cloud via MQTT.
1. Hardware Setup
-
Connect your vehicle's CAN bus(es) to the available CAN 2.0B and/or CAN FD ports.
-
Plug in a 12 V power supply via the power jack.
-
Optionally, insert a microSD card for local logging or configurations.
-
Connect the Ethernet cable—or add a USB-to-Ethernet dongle if needed (though the built-in MagJack is preferable).
2. Software Foundation
-
Develop using the Arduino IDE with Teensyduino add-ons.
-
Start with CAN port libraries and LCD display libraries to visualize incoming frames.
-
Use the QNEthernet library or compatible alternatives to enable network connectivity.
-
Include an MQTT client (e.g.,
PubSubClient
) for cloud communication. -
For simpler prototyping, build a lightweight HTTP server to fetch stats via REST.
3. Functional Flow
-
Frame Capture – Read incoming CAN messages, parse identifiers, flags, and payload.
-
Visual Feedback – Show live diagnostics on the LCD (message count, error frames, etc.).
-
Local Storage (optional) – Log raw or filtered CAN data to microSD.
-
Network Transmission – Format payloads (e.g., JSON) and publish to MQTT topics.
-
Cloud Handling – Use a broker like AWS IoT, Azure IoT Hub, or Mosquitto to consume data for dashboarding or analytics.
-
OTA & Secure Updates – Enhance with firmware signing and remote update capabilities.
Benefits at a Glance
Feature | Advantage |
---|---|
Multiple CAN Ports | Monitor and bridge legacy and modern CAN networks simultaneously |
High-Speed MCU | Enables real-time processing, encryption, and display updates |
Ethernet Access | Reliable, low-latency network transport ideal for gateways |
Display & Storage | Enhances usability with local feedback and data logging |
Rugged Power Design | Suitable for deployment in vehicles, factories, or marine setups |
Arduino-Compatible | Fast development cycle using familiar tools and libraries |
Advanced Ideas & Expansion
-
Edge Filtering & Aggregation – Filter messages or compute aggregate metrics before sending to reduce bandwidth usage.
-
Secure Communications – Add TLS for MQTT over Ethernet; leverage MCU's crypto unit for signing.
-
Dual Connectivity – Combine Wi-Fi or cellular modules for hybrid connectivity—especially useful for remote assets.
-
Cloud Dashboards – Drive real-time visualizations in Grafana, Node-RED, or custom dashboards via MQTT.
-
OTA Firmware Upgrades – Support remote field updates to add features or patch. (Note: implement secure signed firmware.)
Final Thoughts
Bridging field-level CAN systems to cloud-native environments is a growing requirement across industries—automotive diagnostics, industrial automation, fleet management, and marine systems. The Teensy 4.1 Triple CAN Bus Board with 240×240 LCD and Ethernet from Copperhill Technologies stands out as an all-in-one, high-performance solution tailored for this very purpose.
Its combination of multiple CAN interfaces, robust Ethernet networking, on-device diagnostics, and power-hardened design makes it ideal for rapid prototyping and deployment in mission-critical IoT systems.
The Arduino IoT Cloud offers a comprehensive set of tools for developing modern IoT solutions, significantly reducing both prototyping time and deployment costs. This book serves as a step-by-step guide to mastering the powerful Arduino IoT Cloud ecosystem.
You’ll start with an introduction to the IoT landscape—covering architecture, communication technologies, and key protocols—before exploring the capabilities of the Arduino IoT Cloud platform and the Cloud Editor. Through practical, hands-on projects such as monitoring air quality, building a portable asset tracker, and creating a remote alarm system using the LoRaWAN specification, you’ll learn to implement real-world IoT applications.
From there, you’ll dive into device-to-cloud communication, integrating the Arduino IoT Cloud SDK, and using JavaScript for advanced customization. You’ll learn to program IoT nodes, capture and analyze environmental data, and visualize it on dashboards. The book also covers advanced capabilities including task scheduling, device synchronization, remote over-the-air (OTA) updates, and scripting with CCLI—each explained through practical examples.
By the end, you’ll be equipped to work confidently with the Arduino IoT Cloud platform and compatible hardware, enabling you to create industry-ready, cost-effective IoT solutions for applications such as smart homes, precision agriculture, and beyond. More information...
Harnessing the Power of the ESP32-S3: A Look at Copperhill’s CAN FD Development Board
In the evolving landscape of IoT, industrial automation, and automotive communication, the demand for a versatile, wireless-enabled microcontroller with CAN bus capabilities has never been greater. Copperhill Technologies rises to the occasion with its latest innovation—a development board based on the ESP32-S3-WROOM-1-N8R8, engineered to support both Classical CAN and CAN FD protocols. At the heart of [...]

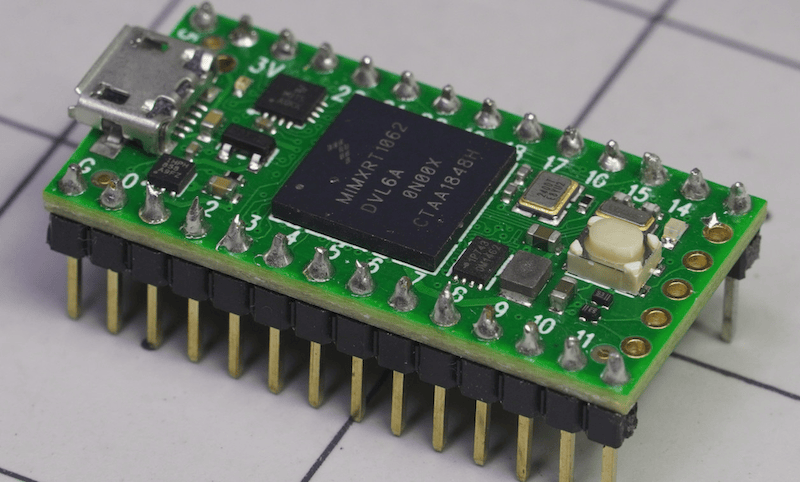

The Teensy Series of Processor Modules: A Versatile Platform for Embedded Systems
