CAN Bus vs. CAN FD: When Is It Worth Upgrading? A Practical Guide for Embedded System Developers

For more than three decades, Classical CAN (Controller Area Network) has been the workhorse of industrial automation, automotive electronics, agricultural machinery, marine systems, and countless embedded applications. It has earned a reputation for exceptional reliability, deterministic communication, and outstanding error detection.

Yet the demands placed on embedded networks continue to grow. Today's systems generate far more data than they did even a decade ago. Cameras, radar, high-resolution sensors, firmware updates, diagnostics, predictive maintenance, and over-the-air software deployment all require more bandwidth than Classical CAN was originally designed to handle.

This is where CAN FD (Flexible Data-Rate) enters the picture.

But does every CAN application need CAN FD? Should existing products be redesigned? Or is Classical CAN still the better choice for many applications?

The answer depends entirely on your application.

In this article, we'll examine the practical differences between Classical CAN and CAN FD, discuss when upgrading actually makes sense, and show how developers can experiment with both technologies using a single development platform.

---

Why Classical CAN Has Been So Successful

Since its introduction by Bosch in the 1980s, Classical CAN has become one of the most successful industrial communication protocols ever created.

Its strengths include:

• Extremely reliable communication

• Robust error detection and fault confinement

• Deterministic arbitration

• Low implementation cost

• Excellent interoperability

• Huge ecosystem of controllers, transceivers, analyzers, and software

Millions of vehicles and industrial systems continue to operate flawlessly using Classical CAN today.

If your network carries only sensor values, switch states, control commands, or modest amounts of process data, Classical CAN remains an excellent solution.

There is no technical reason to replace it simply because CAN FD exists.

---

The Limitations of Classical CAN

Technology evolves.

Modern embedded systems often require significantly higher data throughput than earlier generations.

Classical CAN has two fundamental limitations:

1. Maximum Payload Size

Each CAN frame carries a maximum of:

8 bytes

While sufficient for many control applications, eight bytes quickly become restrictive when transmitting:

• Sensor arrays

• Diagnostic records

• Firmware blocks

• GPS information

• Configuration parameters

• Measurement datasets

Large messages must be fragmented into multiple CAN frames.

---

2. Limited Data Rate

Classical CAN typically operates at:

• 125 kbit/s

• 250 kbit/s

• 500 kbit/s

• 1 Mbit/s (maximum)

While adequate for many networks, higher bus utilization increases latency and reduces available bandwidth for future expansion.

---

What Makes CAN FD Different?

CAN FD was specifically designed to overcome these limitations while maintaining compatibility with existing CAN concepts.

Two major improvements distinguish CAN FD.

Larger Data Payload

Instead of 8 bytes, CAN FD supports:

• 12 bytes

• 16 bytes

• 20 bytes

• 24 bytes

• 32 bytes

• 48 bytes

• 64 bytes

This eight-fold increase dramatically reduces protocol overhead.

For example:

Instead of transmitting eight Classical CAN frames, a single CAN FD frame may carry the same information.

That means:

• fewer arbitration cycles

• less bus traffic

• lower processor overhead

• improved efficiency

---

Faster Data Phase

CAN FD introduces two bit rates.

Arbitration Phase

Still operates at the traditional CAN bit rate.

This guarantees compatibility with the existing arbitration mechanism.

Data Phase

Once arbitration completes, the frame may switch to a much higher transmission speed.

Common values include:

• 2 Mbit/s

• 4 Mbit/s

• 5 Mbit/s

• 8 Mbit/s

This dramatically shortens transmission time for larger payloads.

---

Does CAN FD Replace Classical CAN?

No.

This is perhaps the biggest misconception.

CAN FD is not intended to replace every Classical CAN network.

Instead, it extends the CAN family for applications that genuinely benefit from:

• larger payloads

• increased throughput

• lower latency

• future scalability

Many industrial products shipping today continue to use Classical CAN because it fully satisfies their communication requirements.

---

When Should You Stay with Classical CAN?

Classical CAN remains the preferred choice if your application involves:

• Industrial controllers

• PLC communication

• Engine control

• Agricultural equipment

• Marine electronics

• Simple sensor networks

• HVAC systems

• Elevator controls

• Robotics

• Machine automation

particularly when:

• messages are short

• update rates are moderate

• network utilization is low

In these situations, upgrading provides little practical benefit.

---

When Does CAN FD Become Worthwhile?

CAN FD starts to shine when your application requires significantly more bandwidth.

Examples include:

Advanced Diagnostics

Instead of sending dozens of small diagnostic frames, larger datasets fit into a handful of CAN FD messages.

---

Firmware Updates

Bootloaders benefit enormously from 64-byte payloads.

Fewer packets mean:

• shorter update times

• less protocol overhead

• improved reliability

---

Data Logging

High-speed logging systems often collect:

• temperatures

• pressures

• accelerometer data

• GPS coordinates

• battery information

Sending these measurements in larger CAN FD frames greatly improves efficiency.

---

Sensor Fusion

Modern embedded systems combine information from multiple sensors.

Rather than distributing data across many Classical CAN frames, CAN FD can package related measurements into a single message.

---

Gateway Applications

Gateways often aggregate traffic from multiple networks.

Larger payloads simplify message translation and reduce processing overhead.

---

Is Upgrading an Existing Product Worth It?

That depends on one question:

What problem are you trying to solve?

If your current system already:

• meets timing requirements

• has available bandwidth

• operates reliably

then there may be little benefit in redesigning it.

However, if you are developing a new generation of your product, CAN FD provides valuable headroom for future expansion.

Many manufacturers now adopt CAN FD not because today's application demands it, but because tomorrow's likely will.

---

The Best Way to Learn CAN FD

One of the biggest challenges developers face is gaining hands-on experience without abandoning their existing CAN knowledge.

A development board that supports both Classical CAN and CAN FD provides the ideal learning environment.

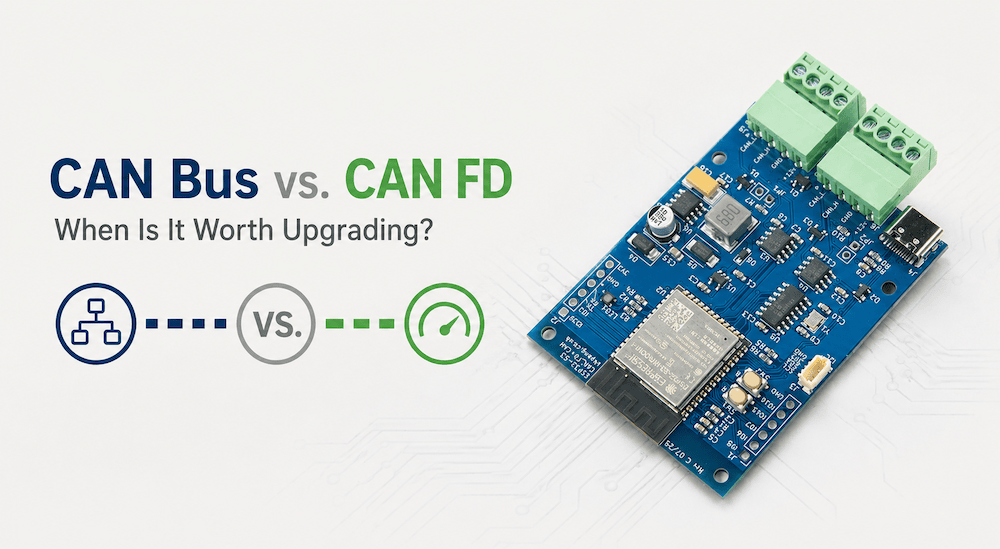

The ESP32S3 Board with CAN FD and Classical CAN Ports is an excellent example. Built around the ESP32-S3, it combines the microcontroller's native Classical CAN (TWAI) controller with a dedicated Microchip MCP2518FD CAN FD controller. This allows engineers to work with legacy CAN 2.0 networks and modern CAN FD networks on the same hardware platform. Additional features such as Wi-Fi, Bluetooth 5, native USB, generous Flash and PSRAM, and dual CAN interfaces make it suitable for gateways, data loggers, diagnostics tools, wireless monitoring systems, and protocol experimentation.

This architecture lets developers:

• Compare Classical CAN and CAN FD side by side.

• Measure bandwidth improvements with real applications.

• Build gateways that bridge legacy and next-generation networks.

• Evaluate software architectures before committing to a hardware redesign.

• Develop firmware that supports both protocols.

Rather than forcing a binary choice, a dual-interface board provides a practical migration path while protecting your existing investment in Classical CAN.

---

Classical CAN and CAN FD Can Coexist

One of the strengths of modern CAN development is that migration doesn't have to happen all at once.

Many systems now use:

• Classical CAN for existing ECUs

• CAN FD for new subsystems

• gateways connecting both worlds

This incremental strategy minimizes development risk while allowing new products to take advantage of CAN FD's capabilities.

---

Final Thoughts

CAN FD is an important evolution of one of the world's most successful fieldbus technologies. Its larger payloads and higher data rates solve real problems in data-intensive applications such as diagnostics, firmware updates, sensor fusion, and high-speed logging.

At the same time, Classical CAN remains the right solution for countless control systems where reliability, determinism, and simplicity matter more than raw bandwidth.

Rather than asking whether CAN FD is "better," the more useful question is whether it addresses the communication challenges of your application. If your network is approaching its bandwidth limits or your next product generation demands greater throughput, CAN FD is well worth considering. If not, Classical CAN may continue serving you reliably for many years.

For developers exploring both technologies, a platform that supports Classical CAN and CAN FD simultaneously offers the most practical path forward. It allows you to experiment, benchmark, and prototype with real hardware before deciding whether a migration is justified—making your next design decision based on engineering evidence rather than marketing claims.

---
