Serial-To-WiFi Converter Designed To Connect A Device To A Computer Wirelessly

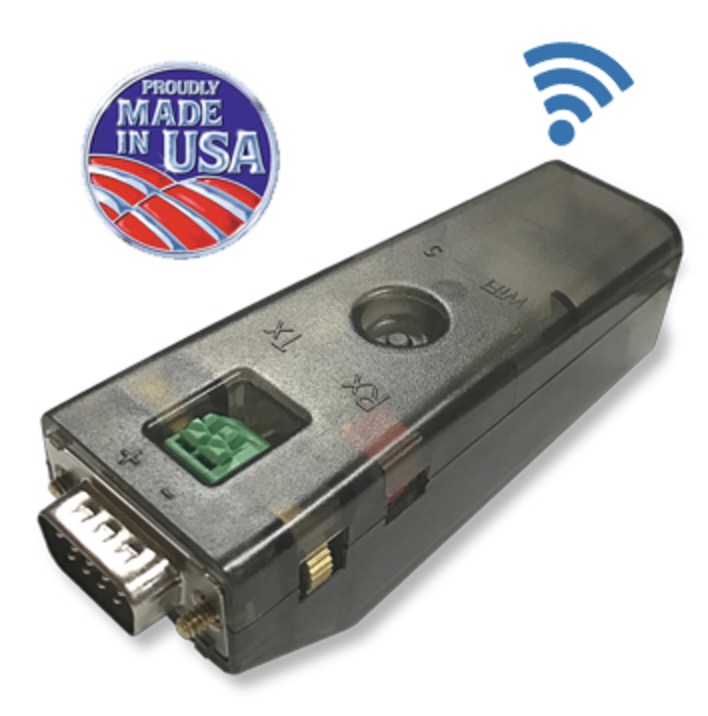

EZAutomation's EZWifi is a serial-to-wifi converter that is designed to connect a device to a computer wirelessly. It is designed for applications where connectivity might be restricted in area where the user will require access to the network. EZWiFi is equipped with two wireless modes: "Infrastructure Mode", which connects any laptop to the device as long as they are on the internal network; "AdHoc," which does not require any access point or router and instead establishes its own to allow communication between EZWiFi and a PC. It also has a safety measure that prevents a 3rd party from randomly accessing the device while it is in "AdHoc" mode. Each Wi-Fi module is individually programmed with a unique SSID and password. These are also programmable through the respective EZAutomation software if the password to the project is known. EZWiFi also supports 802.11 b/g/n protocols.

Features

• DIP Switch Selectable Mode
  • Ad-Hoc One-to-One (AP Mode)
  • Infrastruture Network (STA Mode)
• Security Protection: Unique SSID & Password for each module
• 802.11 b/g/n protocols supported
• Powered by 24VDC or 2AAA Batteries
• Software security formats include WPA/WPA2 with encryption WEP/TKIP/AES
• Network Protocols supported are IPV4, TCP/UDP/HTTP/FTP
• FCC Certified
• LED Indicators to show communication and mode connectivity

=> Download/View the EZAutomation EZWifi Data Sheet (PDF)...

The next frontier for wireless LANs is 802.11ac, a standard that increases throughput beyond one gigabit per second. This concise guide provides in-depth information to help you plan for 802.11ac, with technical details on design, network operations, deployment, and monitoring.

Author Matthew Gast, an industry expert who led the development of 802.11-2012 and security task groups at the Wi-Fi Alliance, explains how 802.11ac will not only increase the speed of your network, but its capacity as well. Whether you need to serve more clients with your current level of throughput, or serve your existing client load with higher throughput, 802.11ac is the solution. This book will get you started.

• Understand how the 802.11ac protocol works to improve the speed and capacity of a wireless LAN
• Explore how beamforming increases speed capacity by improving link margin, and lays the foundation for multi-user MIMO
• Learn how multi-user MIMO increases capacity by enabling an AP to send data to multiple clients simultaneously
• Plan when and how to upgrade your network to 802.11ac by evaluating client devices, applications, and network connections
• More Information...
