Miniature Joystick With CAN Bus Interface Supports SAE J1939 And CANopen

Posted by Industry News on

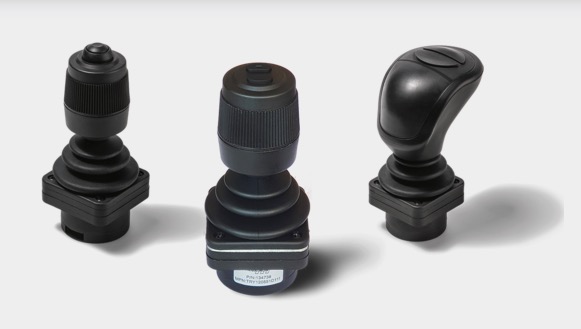

Megatron Finger Joystick Series TRY120 With CAN bus, SAE J1939, CANopen Interface

Megatron introduced its TRY120 series of miniature joysticks with an installation depth of 26 mm. The onboard CAN Bus interface supports the CANopen and SAE J1939 serial protocols. With the TRY120 series, Megatron expands the TRY100 finger joystick series with a version for the operation in harsh environments. Both sets use identical geometries and thus allow a direct replacement.

The joystick robustness stems from the internal metal mechanism. The extended spring and reset forces and the IP67-rated sealing are essential features for outdoor applications. The devices are designed for approximately five million movements, guaranteeing safe operation throughout the lifespan of machines.

The joysticks come with up to three axes and two pushbuttons. The maximum permissible force on the mechanism is 350 N in X- and Y-direction. The Z-axis of the knob withstands up to 9-Nm torque. The sensor technology utilizes the non-contact Hall effect.

The four available knob types are suitable for operation for two and three axes, whereby the 2-axis knob is not rotatable. The 3-axis version has an integrated sensor and a return spring. The Cobra knob represents a particularly attractive design, supporting operations using the whole hand.

More Information...
