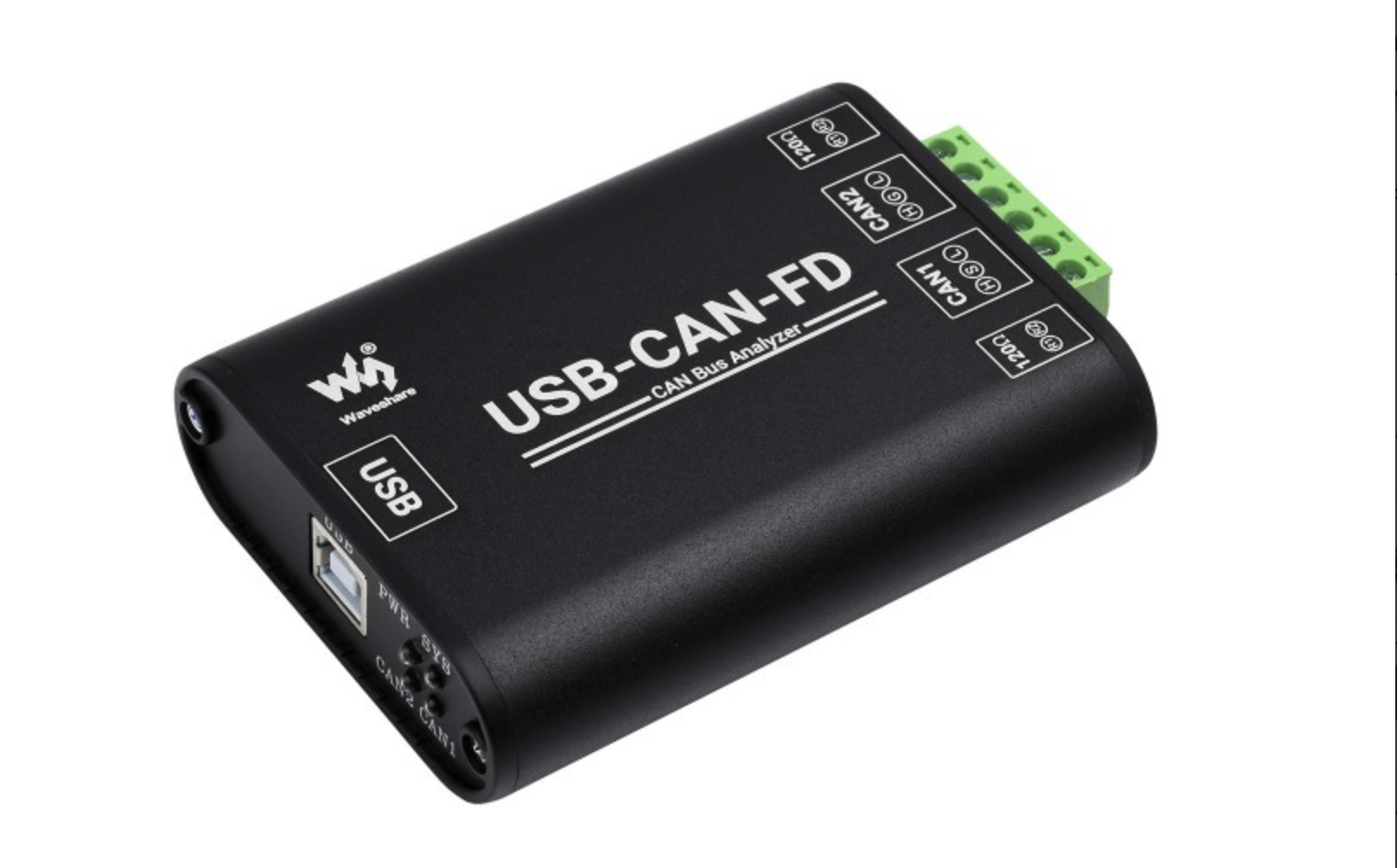

Industrial Grade CAN/CAN FD Bus Data Analyzer with USB Port
Posted by on
The USB-CAN-FD adapter is a versatile tool that empowers engineers with its industrial-grade high-performance capabilities. It serves as a USB to-CAN FD adapter, CAN/CAN-FD bus communication interface card, and CAN/CAN-FD protocol data analyzer. It is a reliable and robust solution with onboard dual independent CAN FD interfaces, electrical isolation, and multiple protection circuits. The adapter's support for various Windows systems, bundled drivers, CAN FD Tools-related software, secondary development examples, and tutorials further enhance its versatility, making it suitable for various applications.
You can connect it to a PC or an industrial control host using a USB port to control the transceiver, analyze data, collect information, and monitor the CAN/CAN FD bus network. This device is small, user-friendly, and useful for learning and troubleshooting the CAN/CAN FD bus. It can also be integrated into various industrial, power communication, and intelligent control applications that utilize CAN/CAN FD bus communication.
Supports Protocol Conversion Between USB And CAN/CAN FD Bus—The onboard High-Speed USB 2.0 Interface and 2-Ch CAN/CAN FD Bus Interfaces support bidirectional transmission and can work independently without interfering with each other.
Programmable Baud Rate, Automatic Detection - The CAN Bus baud rate is configurable from 100 kbps to 5 Mbps. It supports baud rate calculation, auto-detection, and setting via the configuration tool.
Supports Decoding And Analyzing For Multiple CAN Protocols - It supports decoding and analyzing for multiple CAN protocols, including CAN 2.0A, CAN 2.0B, ISO11898-1, and the CAN FD protocol specification V.1.0. It also supports Standard and Extended data frames.
Supports Multi Development Environments - Provides examples for secondary development projects on various mainstream development platforms, including C#, VC, Delphi, Qt, LabVIEW, and Python/Python-CAN.
High-Performance Hardware Solution — This product adopts Microchip's original controller and 32-bit MIPS M4K Core running at a frequency of up to 80MHz. It provides high performance, stability, and reliability.
With Electrical Isolation And Multiple Protection Circuits - Adopts high-speed signal isolators, dual DC-DC power isolation, and full isolation for USB, CAN1, and CAN2, ensuring superior communication security and stability.
CANFDuino - Dual CAN/CANFD Prototyping Platform
The CANFDuino is a fully-equipped embedded system designed for real-world applications. It integrates essential features such as dual CAN/CANFD ports, an SD card slot, and numerous analog and digital I/O. In addition, it includes an onboard prototyping shield for SMT and through-hole components, a sturdy aluminum enclosure, and durable connectors.
The CANFDuino supports CANFD, the latest version of the CAN Bus standard, which accommodates speeds of up to 5 Mbps. It has two native ports with DB9 connectors in an enclosure, ready to be mounted on your vehicle or installed in your autonomous project. This platform suits tinkerers, hackers, and industry professionals seeking an off-the-shelf, open-source CAN Bus solution that requires minimal or no hardware assembly.
