The affordable STM32 Nucleo boards enable anyone to try out new ideas and instantly build prototypes with any STM32 MCU. Sharing identical connectors, the STM32 Nucleo boards can be effortlessly extended by a considerable number of functional application hardware add-ons (Nucleo-64 include Arduino Uno rev3 & ST morpho compatible connectors). The STM32 Nucleo boards integrate an ST-Link debugger/programmer, so there is no requirement for a separate probe. The STM Nucleo boards come with a complete STM32 software HAL library in combination with various software examples, and they work seamlessly with a wide range of development environments including IAR EWARM, Keil MDK-ARM, mbed and GCC/LLVM-based IDEs. STM32 Nucleo users have unrestricted access to the mbed online resources (compiler, C/C++ SDK, and developer community) at www.mbed.org, allowing to create a complete application within only a few minutes.

The XNucleo board series represents an extended version of the standard Nucleo development boards as explained in detail below.

XNUCLEO-F411RE Features

Compatible with NUCLEO-F411RE, onboard Cortex-M4 microcontroller STM32F411RET6
Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources
ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
Supports mbed, build prototype quickly by mbed SDK and online tools
Comprehensive free software HAL library including a variety of software examples
Comes with a separated ST-LINK/V2 module

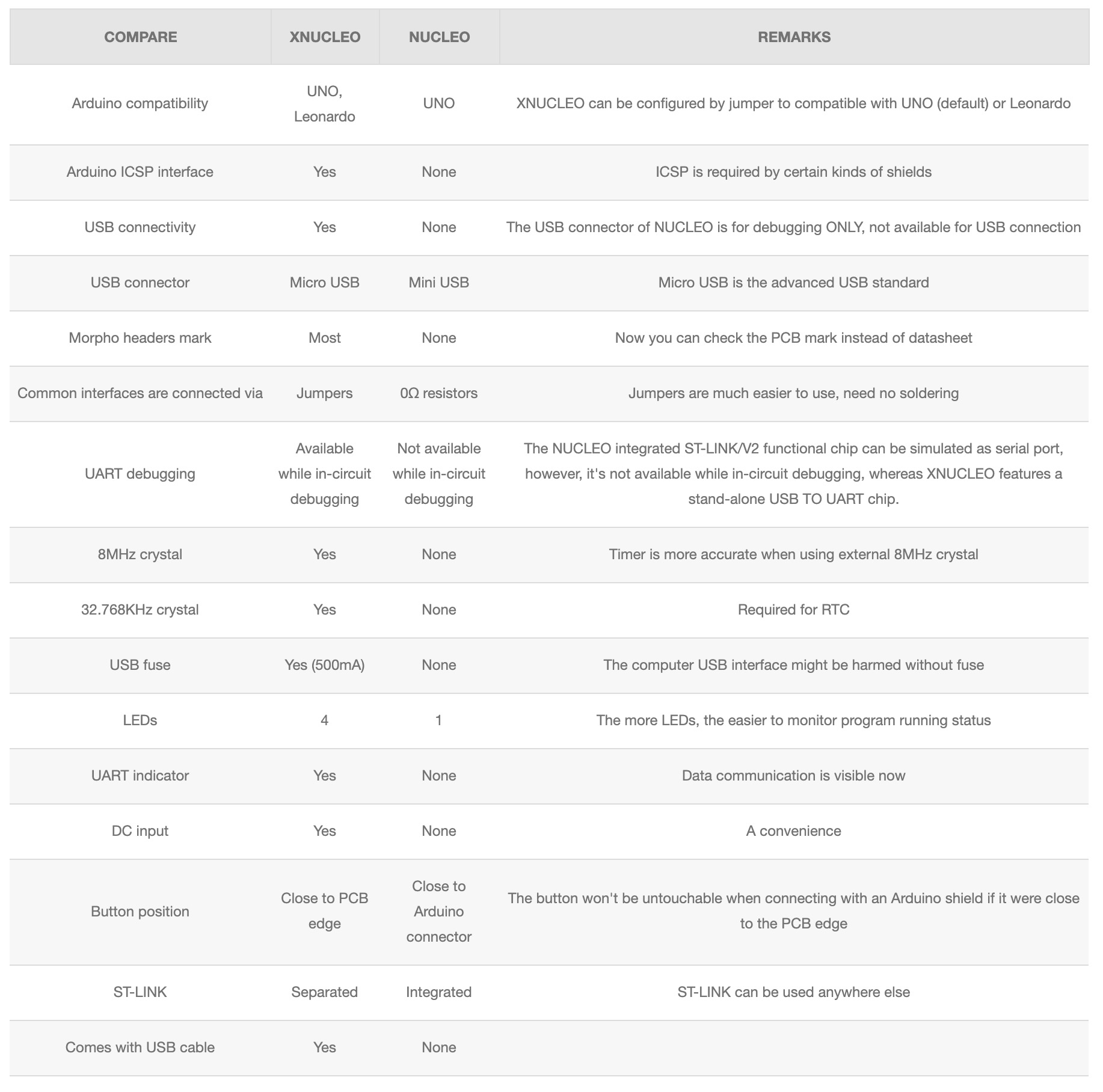

XNucleo - Nucleo Comparison

XNUCLEO-F411RE - STM32 NUCLEO Development Board Components

STM32F411RET6
- Core : ARM® 32-bit Cortex™-M4
- Operating frequency : 100MHz
- Operating voltage : 1.7V-3.6V
- Package : LQFP64
- Memories : 512kB Flash, 128kB SRAM
- Interfaces : 1 x SDIO, 1 x USB 2.0 FS, 5 x SPI or 5 x I2S, 3 x USART, 3 x I2C
- AD/DA : 1 x AD (12 bit, 16 channels)
SPX3819M5 : 3.3V voltage regulator
AMS1117-5.0 : 5.0V voltage regulator
CP2102 : USB to UART convertor
Arduino connector : for connecting Arduino shields
ICSP interface : Arduino ICSP
USB TO UART : for debugging
USB connector : USB communication interface
SWD interface : for programming and debugging
ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion
6-12V DC input
User button
Reset button
Power indicator
User LED
500mA fast self-recovery fuse
Serial port Rx/Tx indicator
8MHz crystal
32.768KHz crystal
ADC/I2C selection jumper
- short A and B : Arduino A4, A5 is used as I2C
- short B and C : Arduino A4, A5 is used as ADC
UART selection jumper
MCU current test jumper : for low power tests
Power selection jumper
- short 5V and U5V : powered from USB connection
- short 5V and E5V : powered from external power supply
USB enable jumper
- short the jumper to enable
- open the jumper to disable
User button jumper
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires
User LED jumper
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires

XNUCLEO-F411RE Expansion Headers

XNUCLEO-F411RE Dimensions
