SMARC Module With Intel Pentium/Celeron/Atom x6000 Series Supports Two CAN FD Ports

Posted by Industry News on

Advantech SOM-2532 Intel Pentium, Celeron and Atom x6000 Series.jpg

Advantech launched their SMARC 2.1 SOM‑2532 module, designed with real-time automation control, edge-connected, and safety-critical applications in mind.

The module combines the 10-nm Intel Elkhart Lake processor with up to four cores and 16‑GiB LPDDR4 memory. The CPU (Central Processing Unit) performance is improved by a margin of more than 40 % and graphic performance up to two times compared to the previous model.

The design includes two CAN FD ports, two GbE LAN interfaces with TSN (Time-Sensitive Networking) Phy (physical layer), and three independent displays with up to 4K‑resolution. Alternatively, it is possible to use the CAN ports in Classical CAN mode. The TSN Phy improves the data synchronization precision over the network and minimizes jitter reducing latency during real-time device communication. Consequently, the device is well suited for usage for industrial control, transportation, and medical applications. Additional peripherals include four PCIe, one Sata, two USB 3.2, four USB 2.0, and 14 GPIO (General-Purpose I/Os) ports.

The two LAN interfaces can connect multiple systems or schedule firmware updates using Advantech's Wise-Paas/Ota server. Users can also manage external communication via an independent LAN under various usage conditions. Additionally, the design provides functional safety features to reduce the dangers caused by a system malfunction. The module supports an extended operating temperature range from -40 °C to +85 °C.

Key Features

  • SMARC V2.1 Specification Compliant Module with Intel® Elkhart Lake processors
  • 2 ~ 4 Core CPU with up to 16GB LPDDR4 3200MT/s and IBECC supported by specific SKUs
  • 3x independent displays: LVDS(1920 x 1200 @ 60Hz/eDP), DP++(up to 4096×2160 @ 60 Hz), and HDMI (up to 3840x2160 @ 30 Hz,4096×2160 @ 60 Hz
  • 4x PCIe x1, 2x GbE LAN support TSN, 2x USB 3.2 GEN2, 4x USB 2.0, 14x GPIO
  • 1x UFS onboard, 1x SATA III
  • Operating temperatures: Standard 0 ~ 60 °C (32 ~140 °F), Extended -40 ~ 85 °C (-40 ~ 185 °F)
  • Supports Advantech iManager and WISE-PaaS/DeviceOn

More Information...


Copperhill technologies - Teensy 4.1 Triple CAN Bus Board with 240x240 LCD and Ethernet

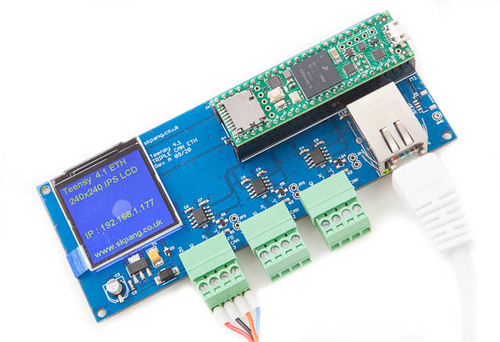

Teensy 4.1 Triple CAN Bus Board with 240x240 LCD and Ethernet
