Arduino-Compatible Discovery Kit for IoT Node For Applications With Direct Connection To Cloud Servers

Posted by Industry News on

STMicroelectronics Discovery kit for IoT node - multi-channel communication with STM32L4

STMicroelectronics introduced their B-L475E-IOT01A Discovery Kit for IoT Node, which allows for the development of applications with direct connection to cloud servers. The Discovery kit enables a wide diversity of applications by exploiting low-power communication, multiway sensing, and ARM® Cortex® -M4 core-based STM32L4 Series features. The support for Arduino Uno V3 and PMOD connectivity provides unlimited expansion capabilities with a large choice of specialized add-on boards.

Key Features

  • Ultra-low-power STM32L4 Series MCUs based on ARM® Cortex® -M4 core with 1 Mbyte of Flash memory and 128 Kbytes of SRAM, in LQFP100 package
  • 64-Mbit Quad-SPI (Macronix) Flash memory
  • Bluetooth® V4.1 module (SPBTLE-RF)
  • Sub-GHz (868 or 915 MHz) low-power-programmable RF module (SPSGRF-868 or SPSGRF-915)
  • Wi-Fi® module Inventek ISM43362-M3G-L44 (802.11 b/g/n compliant)
  • Dynamic NFC tag based on M24SR with its printed NFC antenna
  • 2 digital omnidirectional microphones (MP34DT01)
  • Capacitive digital sensor for relative humidity and temperature (HTS221)
  • High-performance 3-axis magnetometer (LIS3MDL)
  • 3D accelerometer and 3D gyroscope (LSM6DSL)
  • 260-1260 hPa absolute digital output barometer (LPS22HB)
  • Time-of-Flight and gesture-detection sensor (VL53L0X)
  • 2 push-buttons (user and reset)
  • USB OTG FS with Micro-AB connector
  • Expansion connectors:
    • Arduino™ Uno V3
    • PMOD
  • Flexible power-supply options:
    • ST LINK USB VBUS or external sources
  • On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, virtual COM port and debug port
  • Comprehensive free software HAL library including a variety of examples, as part of the STM32Cube package
  • Support of a wide choice of Integrated Development Environments (IDEs) including IAR™ , Keil® , GCC-based IDEs, ARM® mbed Enabled™
  • ARM® mbed Enabled™ (see http://mbed.org)

More Information


Arduino-Based ECU Development Board With Dual CAN Bus Interface for CAN Bus And SAE J1939 Applications

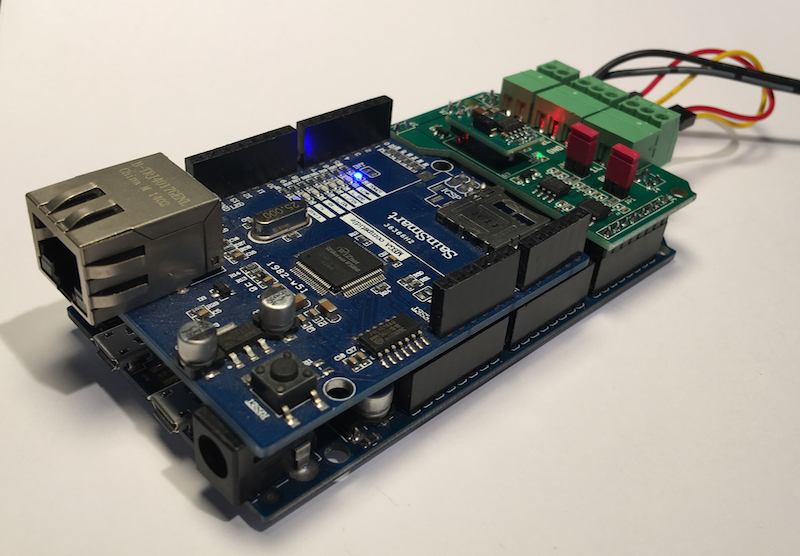

Arduino-Based ECU Development Board With Dual CAN Bus Interface
